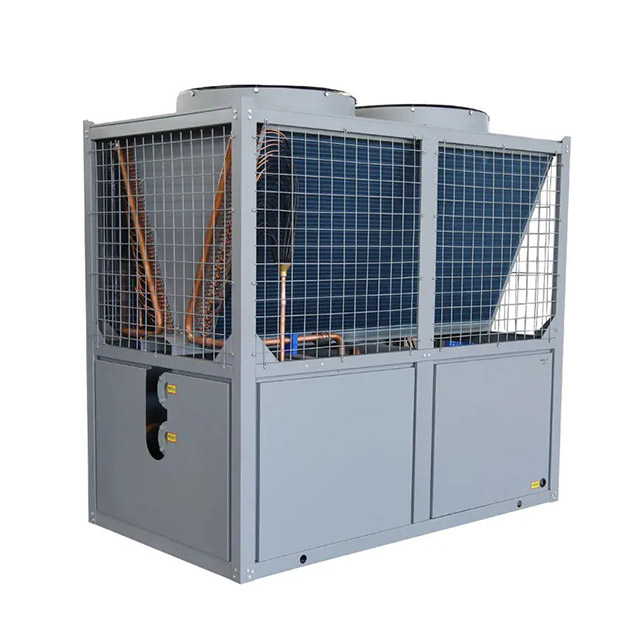

The LEOMON FKH-18II/TGW is a compact, energy-efficient steam heat pump designed to generate 150°C saturated steam for light industrial applications. With a heating capacity of 20kW and steam output of 30kg/h, this unit offers an ideal alternative to electric boilers, cutting energy consumption by up to 80%. Its small footprint (1600×780×2000 mm) and low noise (≤72 dB) make it suitable for workshops, small processing lines, and laboratories. Built with industrial-grade components and a robust casing, it operates reliably at ambient temperatures as low as 15°C, delivering consistent 150°C steam for your process heating needs.
1. Up to 80% Energy Savings
Compared to traditional electric steam boilers, the FKH-18II/TGW achieves dramatic energy efficiency through air-source heat pump technology. Under rated conditions (20°C ambient, 150°C steam), it consumes only 12kW of electricity to produce 20kW of heat, resulting in a COP of 1.67. While this is lower than pool heat pumps due to high temperature lift, it still saves a substantial amount compared to direct electric heating (where COP would be 1.0). Typical users see payback within 1–2 years.
2. Compact & Space-Saving Design
With dimensions of just 1600×780×2000 mm and a weight of 240 kg, this model fits easily into cramped equipment rooms or rooftop areas. The small footprint allows retrofitting into existing facilities without major renovation.
3. Safe & Eco-Friendly Operation
No combustion, no fuel storage, no risk of gas leaks or explosion. The unit produces no CO or CO₂ emissions onsite. Fully electric with multiple protections (overload, leakage, high-temperature), it ensures safe 24/7 operation.
4. Easy Installation & Low Maintenance
The unit comes pre-charged with refrigerant and requires only power connection (380V 3N~50Hz), water supply (DN20), and steam outlet (DN32) hookup. Annual maintenance is simple: inspect filters, check electrical connections, and clean coils.
