1.Efficient and energy-saving:
In extremely cold environments, compared to traditional low-temperature air source heat pumps, its overall heating capacity attenuation is smaller and its energy efficiency is higher. The comprehensive energy attenuation rate shall not exceed 10%, and the lower the ambient temperature, the higher the heating water temperature, meeting the thermal matching requirements of the end pipeline.
2.Stable and reliable:
Adopting two-stage compression technology, the dual compressors operate alternately to ensure stable operating pressure and avoid overload. Equipped with multiple self checking and protection functions such as compressor exhaust temperature protection and system high and low pressure protection, ensuring the safe operation of the system.
3.Long lifespan and low maintenance:
The equipment has a lifespan of 10-15 years, strong durability, and low maintenance costs. Designed with stainless steel sheet metal, it is heat-resistant, corrosion-resistant, and not easily deformed.
4.Intelligent and convenient:

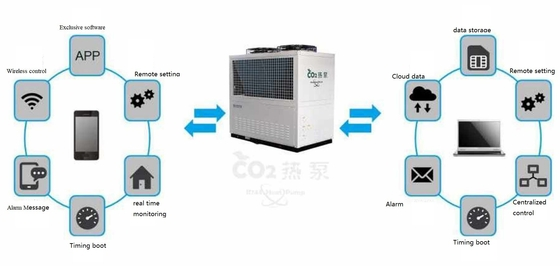

Equipped with 5G cloud technology, it supports remote monitoring, fault diagnosis, and online maintenance to improve service efficiency. Intelligent zone defrosting reduces the impact of defrosting on heating efficiency and ensures more stable water temperature.
Type | FKH-80II/GW |
Top out wind | |
Power specifications | 380V3N~50Hz |
Heating capacity under A1 | 80kW |
Heating consumption power under | 32kW |
Heating capacity under A2 | 76kW |
Heating consumption power under | 34.5KW |
Heating capacity under A3 | 65kW |
Heating consumption power | 37.5kW |
Heating capacity under A4working | 58kW |
Heating consumption power | 36kW |
Maximum operating current | 120A |
Discharge | 13.8m³/h |
Noise | ≤65dB(A) |
Water side pressure loss | ≤85kPa |
Unit size (ength x width x height mm) | 2260×1030×2170 |
CONNECT SIZE | DN50(flange) |
Unit weight (kg) | 750 |
1.Swimming Pool Heating:
In home or public swimming pools, using a high-temperature heat pump can maintain a constant water temperature and provide a comfortable swimming environment. Compared to traditional electric or gas heating methods, high-temperature heat pumps are more energy-efficient and environmentally friendly.
2.Hot Spring Resort:
Hot spring resorts need to continuously provide high-temperature hot water to meet the needs of tourists. High temperature heat pumps can stably generate high-temperature hot water and have low operating costs, making them an ideal choice for hot spring resorts.
3.Hot water supply for schools and hospitals:
Public places such as schools and hospitals require a large amount of hot water supply for bathing, washing, and other purposes. High temperature heat pumps can efficiently provide the required hot water and operate stably and reliably, reducing maintenance costs.
4.Agricultural greenhouse heating:
In agricultural greenhouses, heating equipment is required to maintain a suitable temperature to promote plant growth. High temperature heat pumps can serve as an environmentally friendly and efficient heating method, providing a stable heat source for greenhouses.

>> The company has high-temperature heat pump
Ma'anshan Laineng Energy saving Technology Co., Ltd. is an enterprise that integrates research and development, production, sales, and service, and has outstanding performance in the field of heat pump energy-saving products. The company's business mainly covers energy-saving and environmentally friendly products, such as carbon dioxide heat pumps, providing customers with one-stop services from design, production to delivery. In terms of energy-saving products, taking carbon dioxide heat pumps as an example, their products have the characteristics of natural environmental protection, good high-temperature heating performance, strong low-temperature adaptability, high efficiency, and wide applicability. Our company's products have been exported to more than 40 countries and regions including the United States, Canada, Australia, Kenya, Brazil, etc., and have received praise and praise from customers. The company is committed to every project, guided by customer needs, and strives to become a first-class service enterprise with international competitiveness.
If you are satisfied with our company's heat pump products, you can directly order or consult about heat pump related issues. We will provide you with the best heat pump products and services. We are pleased to cooperate with you and bring you satisfactory products.
1.What measures should be taken when a high-temperature heat pump encounters unstable network signals or malfunctions in its related mobile applications?
Prioritize ensuring consistent network connectivity to facilitate uninterrupted remote operations. If the problem persists, please contact the manufacturer or authorized service provider for remote troubleshooting or on-site technical assistance as needed.
2.Is it troublesome to clean the machine?
Just rinse the external unit filter once a year, just like the air conditioner, no need to move anything else.
3.What should I do if frequent frosting causes heating interruption?
Adjust the fan speed or optimize the fin spacing to slow down the frosting speed. When installing in humid areas, priority should be given to using reverse circulation defrosting or hot air bypass defrosting solutions.
Reduce frosting rate by optimizing fan speed (≤600 RPM) or increasing fin spacing (≥2.5 mm).For installations in high-humidity regions (>70% RH), deploy reverse-cycle defrosting or hot-gas bypass defrosting systems.
