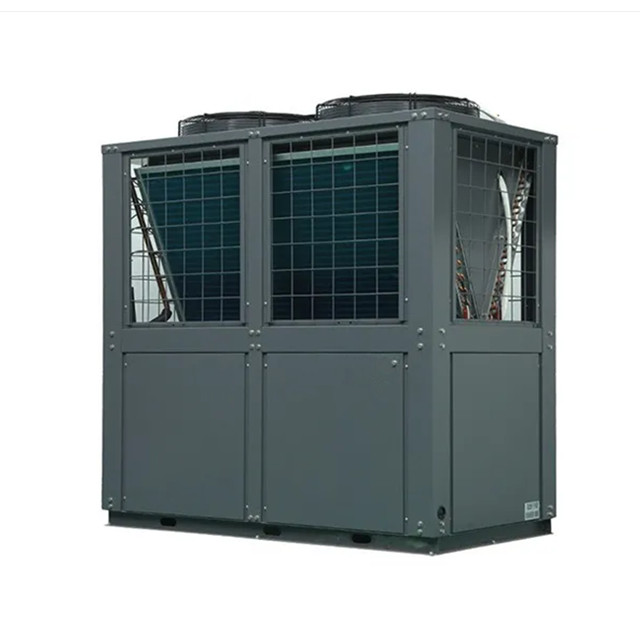

120C Hot Water Heat Pump 50kW - 100kW

Leomon high-temperature heat pumps utilize an intelligent temperature control system, capable of delivering water temperatures of up to 120°C.

Brand:
Leomon

Quantity:
Availability:





Inquire Add to Basket

>> Product Description

Leomon high-temperature heat pumps utilize an intelligent temperature control system, capable of delivering water temperatures of up to 120°C.

Leomon units can operate in ambient temperatures as low as -30°C (-22°F) while remaining significantly more energy-efficient than traditional electric boilers.

These 120°C high-temperature heat pumps are ideal for applications such as thermal oil storage, dairy processing, beverage and brewery production, commercial kitchen sanitization, and the textile dyeing and printing industry. They represent the most energy-efficient and cost-effective solution for high-temperature water heating.

Features

Features

1. WiFi remote control

2. IoT management

3. Power consumption monitoring

4. MODBUS communication

5. Low-noise operation

6. Stable performance down to -25°C

7. Maximum water outlet temperature of 120°C

Advantages

1. Optimized for High-Temperature Refrigerants

The refrigerant circulation path and thermophysical properties are specifically optimized for high-temperature conditions, enhancing the thermodynamic cycle efficiency of the system within high-temperature ranges.

2. Reinforced High-Temperature, High-Pressure Heat Exchanger

The shell-and-tube heat exchanger features a reinforced structural design and high-pressure resistance, ensuring superior stability, safety, and reliability during high-temperature and high-pressure operation.

3. Redundant System Safety Protection

To guarantee reliable and safe operation—even under extreme working conditions—the system is equipped with multi-level protection mechanisms for pressure, temperature, and flow.

4. Industrial-Grade Continuous Operation

Designed for applications such as industrial steam replacement, this unit is built to withstand prolonged, high-load, high-temperature operation, meeting the continuous production requirements of manufacturing processes.

Specifications

Type	FKH-20II/TGW	FKH-50II/TGW	FKH-100II/TGW
Type	Top out wind	Top out wind	Top out wind
Power specifications	380V 3N～50Hz	380V 3N~50Hz	380V 3N～50Hz
Heating capacity under A1 operating condition(20)	20kW	50kW	100kW
Heating consumption power under A1 working condition	12kW	29kW	58kW
Heating capacity under A2 working condition(7)	19kW	49kW	98kW
Heating consumption power under A2 working condition	12kW	31kW	62kW
Heating capacity under A3working condition( -12)	15kW	42kW	85kW
Heating consumption power under A3 working condition	11.5kW	32kW	63kW
Heating capacity under A4working condition(-20)	14kW	37kW	75kW
Heating consumption power under A4 working condition	11.2kW	30kW	60kW
Maximum operating current	36A	70A	140A
discharge	3.4m³/h	8.6m³/h≤	17.2m³/h
noise	≤58dB(A)	60dB(A)	≤72dB(A)
Water side pressure loss	≤75kPa	≤75kPa	≤88kPa
Unit size(length xwidth x height mm)	860×780×1780	1550×780×1780	2260×1230×2170
CONNECT SIZE	DN32(hexagon nipples)	DN40(hexagon nipples)	DN80(flange)
Unit weight(kg)	240	450	1350
