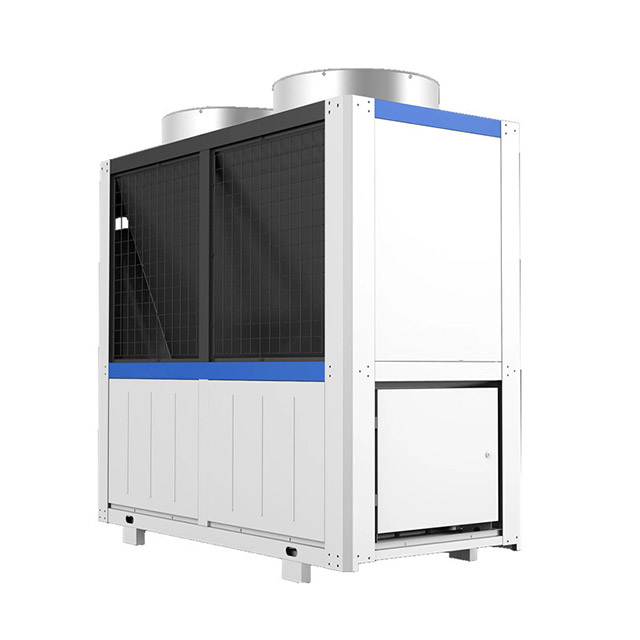

Efficient 120°C High Temperature Steam Heat Pump Industrial System

This air-source heat pump is designed to produce steam at 120°C for industrial applications. It uses a two-stage compression system. Model selection depends on required steam output, steam pressure, feedwater temperature, ambient conditions and available power supply. Contact LEOMON for technical specifications and application assessment.

Brand:
LEOMON

Quantity:
Availability:





Inquire Add to Basket

120°C High Temperature Steam Heat Pump High temperature heat pump Energy Saving Steam Heating Equipment Industrial hot water heat pump OEM Heat Pump Supplier Factory Steam Heating

>> Product Advantage

Product Features

1. Steam Production at 120°C

This series is designed to produce steam at 120°C for industrial process heating. Selection should account for the required steam pressure, steam demand and feedwater conditions.

2. Five Models for Different Steam Requirements

The series includes FKH-20II/TGW, FKH-50II/TGW, FKH-70II/TGW, FKH-100II/TGW and FKH-280II/TGW. Listed steam outputs range from 30 to 400 kg/h. Refer to the technical table for model-specific data.

3. Performance Data at Different Ambient Temperatures

The technical table provides heating capacity and power input at ambient temperatures of 20°C and -12°C. These figures help assess model suitability under different installation conditions.

4. Project-Specific Selection

Please provide your required steam temperature, pressure, hourly steam demand, feedwater temperature, ambient temperature range and available power supply. LEOMON can assess these requirements and recommend a suitable model.

>> Technical Parameters

Key Technical Specifications

Stacked air source high-temperature steam heat pump (120 ℃ steam)
Model	FKH-20II/TGW	FKH-50II/TGW	FKH-70II/TGW	FKH-100II/TGW	FKH-280II/TGW
Generate steam quantity	30kg	80kg	100kg	160kg	400kg
Power Specifications	380V 3N～50Hz	380V 3N～50Hz	380V 3N～50Hz	380V 3N～50Hz	380V 3N～50Hz
A1 heating capacity (20 ℃)	20KW	50KW	70KW	100KW	280KW
A1 Heating consumption power	11.5KW	29KW	40.6KW	56KW	156KW
A2 heating capacity (-12 ℃)	17KW	42KW	62KW	84KW	250KW
A2 heating consumption power	12KW	32KW	54KW	64KW	216KW
Maximum operating current	30A	70A	120A	150A	400A
Noise	≤72dB(A)	≤72dB(A)	≤75dB(A)	≤80dB(A)	≤86dB(A)
Unit size (length x width x height mm)	1600×780×2000	2100×780×2000	3260×1030×2400	3260×1230×2400	4000×2260×2600
Steam connection size	DN32	DN32	DN40	DN50	DN65
Size of water replenishment connection pipe	DN20	DN20	DN20	DN20	DN20
Unit weight (kg)	220	560	1150	1350	4000
The above performance parameters are formulated according to the requirements:
Operating conditions: ambient temperature of 20 ℃, steam temperature of 120 ℃; Operating conditions: ambient temperature -12 ℃, steam temperature 120 ℃;

>> Product Uses

I

Industrial Applications

The 120°C steam heat pump series can be considered for industrial heating processes where its steam temperature, pressure and output match the application requirements.

1. Food and Beverage Process Heating

Potential applications include indirect heating through jacketed vessels and heat exchangers. For direct contact with food, steam quality and water treatment requirements must be assessed separately.

2. Chemical Process Heating

The series can be assessed for vessel heating and other process heating duties. Selection depends on the required process temperature, steam pressure, heating load and installation environment.

3. Textile and Laundry Applications

Potential applications include steam heating for textile processing and laundry equipment, subject to the temperature, pressure and steam consumption requirements of the connected equipment.

4. Existing Steam System Integration

The heat pump can be assessed as a supplementary steam source or for selected heating duties within an existing system. Suitability requires a review of steam demand, operating hours, piping and controls.

Application Assessment

Please send your required steam temperature and pressure, hourly steam demand, feedwater temperature, operating hours and installation conditions. LEOMON can review these details for model selection.

>> FAQ

Frequently Asked Questions

Q1. Does this series produce hot water or steam?

This series is designed to produce steam at 120°C. For hot water applications, please refer to our 90°C hot water heat pump series.

Q2. What steam outputs are available?

The listed steam outputs are 30, 80, 100, 160 and 400 kg/h, depending on the model. Refer to the technical table and confirm the applicable operating conditions before selection.

Q3. Can it replace an existing steam boiler?

Suitability depends on your required steam temperature, pressure, hourly demand and operating schedule. The heat pump can be assessed for selected heating duties or as a supplementary steam source. Replacement requires a project-specific technical review.

Q4. Is the steam suitable for direct food contact or pharmaceutical use?

Steam quality must be assessed against the requirements of the specific process. Suitability depends on feedwater quality, water treatment, steam-contact materials and the complete system design. Please provide your steam quality requirements for technical review.

Q5. How does ambient temperature affect performance?

The technical table lists heating capacity and power input at ambient temperatures of 20°C and -12°C. Performance varies with operating conditions. These listed conditions should not be interpreted as the minimum operating temperature.

Q6. What maintenance is required?

Maintenance should follow the equipment manual and the installation-specific service plan. Contact LEOMON for the maintenance requirements of the selected model.

Q7. What information is needed for a quotation?

Please provide your installation location, required steam temperature and pressure, steam demand in kg/h, feedwater temperature, daily operating hours, ambient temperature range and available power supply.
