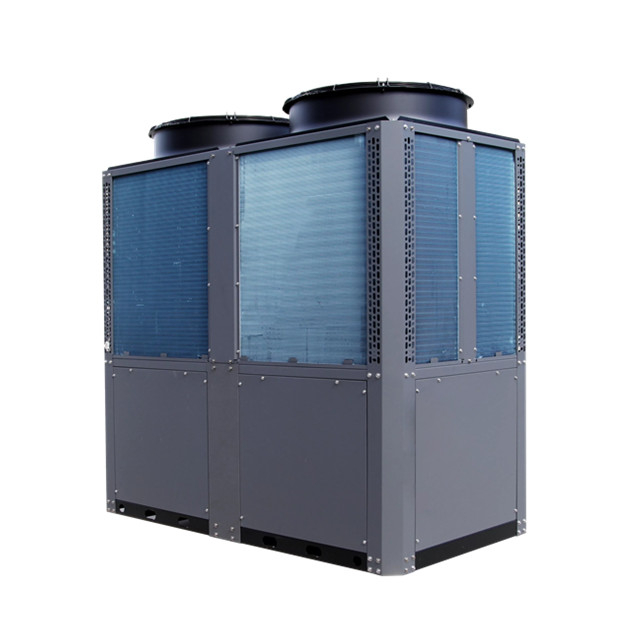

130°C High Temperature Hot Water R1234ze Heat Pump

Air-source high-temperature heat pump water heaters can heat water up to 130°C, meeting requirements for high-temperature hot water and steam.

Brand:
Leomon

Quantity:
Availability:





Inquire Add to Basket

>> Product Description

Air-source high-temperature heat pump water heaters can heat water up to 130°C, meeting requirements for high-temperature hot water and steam. They are an ideal choice for renovation projects and the replacement of aging boilers. These high-temperature heat pumps integrate seamlessly with your existing piping and radiators.

High-temperature heat pump water heaters are advanced, energy-efficient solutions designed to heat water to temperatures significantly higher than those achieved by standard heat pumps. These systems are particularly well-suited for applications requiring temperatures beyond the typical operating range of conventional heat pumps—such as industrial processes, commercial facilities, and specific residential uses.

High-temperature heat pumps are also suitable for thermal oil storage projects, dairy processing, beverage production, breweries, kitchen sanitation in restaurants, and the textile printing and dyeing industry. This represents the most energy-efficient and cost-effective method for heating water.

Features

Features:

1. Produces hot water at temperatures up to 130°C

2. Equipped with a Copeland scroll compressor

3. Uses eco-friendly refrigerants (R134A, R1234ze)

4. High-efficiency heat exchanger

5. Intelligent defrosting system

Advantages:

1. Eco-friendly refrigerants (R1234ze, R134A): Utilizes refrigerants with a low Global Warming Potential (GWP) for energy-efficient heating.

2. A+ Energy Efficiency Rating: High efficiency ensures lower electricity consumption.

3. Intelligent Control Options: Optional smart control features (such as "instant hot water" functionality) for enhanced convenience.

4. Premium Components: Features compressors from top brands (Panasonic/Gree) and valves from Sanhua.

5. Global Certifications: Compliant with RoHS, CB, ISO9001, and CE standards.

Applications:

* Industrial process heating

* District heating networks

Specifications

Type	FKH-20II/TGW	FKH-50II/TGW	FKH-100II/TGW
Type	Top out wind	Top out wind	Top out wind
Power specifications	380V 3N～50Hz	380V 3N~50Hz	380V 3N～50Hz
Heating capacity under A1 operating condition(20)	20kW	50kW	100kW
Heating consumption power under A1 working condition	12kW	29kW	58kW
Heating capacity under A2 working condition(7)	19kW	49kW	98kW
Heating consumption power under A2 working condition	12kW	31kW	62kW
Heating capacity under A3working condition( -12)	15kW	42kW	85kW
Heating consumption power under A3 working condition	11.5kW	32kW	63kW
Heating capacity under A4working condition(-20)	14kW	37kW	75kW
Heating consumption power under A4 working condition	11.2kW	30kW	60kW
Maximum operating current	36A	70A	140A
discharge	3.4m³/h	8.6m³/h≤	17.2m³/h
noise	≤58dB(A)	60dB(A)	≤72dB(A)
Water side pressure loss	≤75kPa	≤75kPa	≤88kPa
Unit size(length xwidth x height mm)	860×780×1780	1550×780×1780	2260×1230×2170
CONNECT SIZE	DN32(hexagon nipples)	DN40(hexagon nipples)	DN80(flange)
Unit weight(kg)	240	450	1350

Contact us

Please contact us for more information about our heat pumps. Our team of experts is ready to answer your questions and provide a free, no-obligation quote.
