Home / Products / High Temperature Air Source Heat Pump / 130°C Hot Water Supply Heat Pump

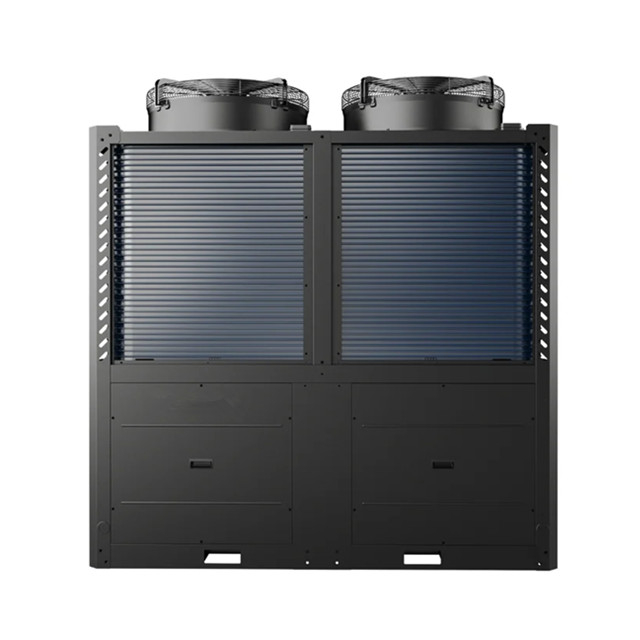

130°C Hot Water Supply Heat Pump

The Leomon high-temperature heat pump utilizes an intelligent temperature control system, capable of delivering water or steam at temperatures up to 130°C.

Brand:
Leomon

Quantity:
Availability:





Inquire Add to Basket

>> Product Description

The Leomon high-temperature air source heat pump utilizes an intelligent temperature control system, capable of delivering water or steam at temperatures up to 130°C.

This high-temperature heat pump is designed for a wide range of commercial and industrial high-temperature hot water applications.

Features

Features:

1. Supplies hot water and steam at temperatures up to 130°C

2. Equipped with a Copeland scroll compressor

3. Uses eco-friendly R1234ze refrigerant

4. High-efficiency heat exchanger

5. Intelligent defrosting system

6. Remote control capabilities via mobile phone or computer

Advantages:

1. Utilizes R1233zd refrigerant with an ultra-low Global Warming Potential (GWP) — classified as A1 (safe for indoor installation)

2. Features a screw compressor specifically engineered for high-temperature environments and heavy-duty, continuous operation

3. High-performance cooling system with an internal circuit

4. Maintains high efficiency even with minimal temperature differentials

5. Robust and durable shell-and-tube heat exchanger

Applications:

* Industrial process heating

* District heating networks

Specifications

Type	FKH-20II/TGW	FKH-50II/TGW	FKH-100II/TGW
Type	Top out wind	Top out wind	Top out wind
Power specifications	380V 3N～50Hz	380V 3N~50Hz	380V 3N～50Hz
Heating capacity under A1 operating condition(20)	20kW	50kW	100kW
Heating consumption power under A1 working condition	12kW	29kW	58kW
Heating capacity under A2 working condition(7)	19kW	49kW	98kW
Heating consumption power under A2 working condition	12kW	31kW	62kW
Heating capacity under A3working condition( -12)	15kW	42kW	85kW
Heating consumption power under A3 working condition	11.5kW	32kW	63kW
Heating capacity under A4working condition(-20)	14kW	37kW	75kW
Heating consumption power under A4 working condition	11.2kW	30kW	60kW
Maximum operating current	36A	70A	140A
discharge	3.4m³/h	8.6m³/h≤	17.2m³/h
noise	≤58dB(A)	60dB(A)	≤72dB(A)
Water side pressure loss	≤75kPa	≤75kPa	≤88kPa
Unit size(length xwidth x height mm)	860×780×1780	1550×780×1780	2260×1230×2170
CONNECT SIZE	DN32(hexagon nipples)	DN40(hexagon nipples)	DN80(flange)
Unit weight(kg)	240	450	1350
