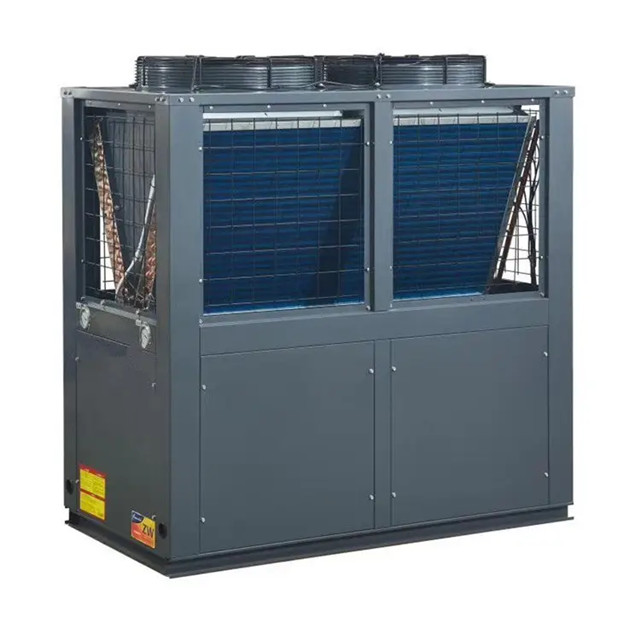

135°C Hot Water Piston Heat Pump

Leomon’s industrial heat pumps provide reliable, high-temperature process heating—up to 135°C—for demanding industrial applications.

Brand:
Leomon

Quantity:
Availability:





Inquire Add to Basket

>> Product Description

Leomon’s industrial heat pumps provide reliable, high-temperature process heating—up to 135°C—for demanding industrial applications. Designed to replace traditional fossil-fuel boilers, these systems significantly reduce energy consumption, operating costs, and carbon emissions.

These high-temperature heat pumps are ideal for thermal oil storage projects, dairy processing, beverage and brewery operations, commercial kitchen sanitization, and the textile dyeing and printing industry. They represent the most energy-efficient and cost-effective method for hot water heating.

Features

Features

1. Operating temperature range: 100°C to 135°C

2. High Coefficient of Performance (COP): 3.5 to 5.5

3. Integrates with existing steam and heating systems

4. Automated control and monitoring capabilities

5. Engineered for industrial-scale deployment

6. Free-cooling mode available

Advantages

1. Eco-friendly refrigerants (R1234ze, R134A): Utilizes refrigerants with low Global Warming Potential (GWP) for energy-efficient heating.

2. A+ Energy Efficiency Rating: High efficiency ensures lower electricity consumption.

3. Smart Control Options: Optional intelligent control features for enhanced convenience.

4. Premium Components: Equipped with compressors from Panasonic/Gree and valves from Sanhua.

5. Global Certifications: Compliant with RoHS, CB, ISO9001, and CE standards.

Specifications

Type	FKH-20II/TGW	FKH-50II/TGW	FKH-100II/TGW
Type	Top out wind	Top out wind	Top out wind
Power specifications	380V 3N～50Hz	380V 3N~50Hz	380V 3N～50Hz
Heating capacity under A1 operating condition(20)	20kW	50kW	100kW
Heating consumption power under A1 working condition	12kW	29kW	58kW
Heating capacity under A2 working condition(7)	19kW	49kW	98kW
Heating consumption power under A2 working condition	12kW	31kW	62kW
Heating capacity under A3working condition( -12)	15kW	42kW	85kW
Heating consumption power under A3 working condition	11.5kW	32kW	63kW
Heating capacity under A4working condition(-20)	14kW	37kW	75kW
Heating consumption power under A4 working condition	11.2kW	30kW	60kW
Maximum operating current	36A	70A	140A
discharge	3.4m³/h	8.6m³/h≤	17.2m³/h
noise	≤58dB(A)	60dB(A)	≤72dB(A)
Water side pressure loss	≤75kPa	≤75kPa	≤88kPa
Unit size(length xwidth x height mm)	860×780×1780	1550×780×1780	2260×1230×2170
CONNECT SIZE	DN32(hexagon nipples)	DN40(hexagon nipples)	DN80(flange)
Unit weight(kg)	240	450	1350

Contact us

If you are looking for a high-temperature heat pump solution, please contact us. Our heat pump experts are ready to provide you with the optimal solution.
