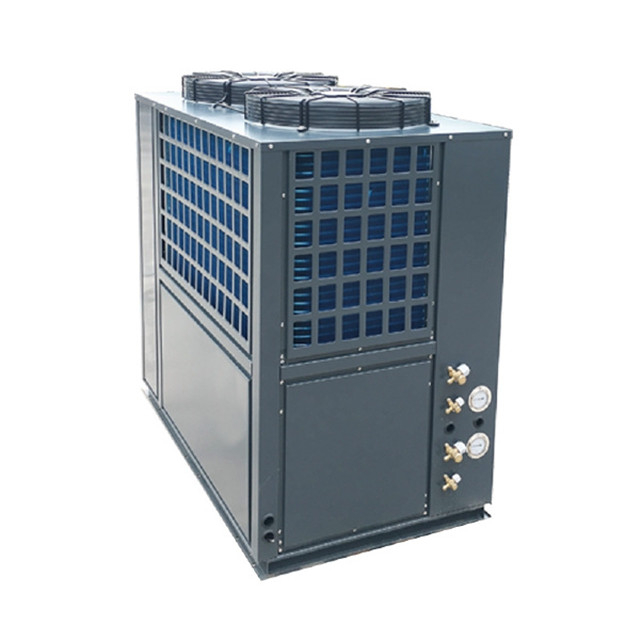

150°C Heat Pump for Industrial Steam Applications

Air-source high-temperature heat pump water heaters can heat water up to 150°C, meeting requirements for high-temperature hot water and steam.

Brand:
Leomon

Quantity:
Availability:





Inquire Add to Basket

>> Product Description

Air-source high-temperature heat pump water heaters can heat water up to 150°C, meeting requirements for high-temperature hot water and steam. They are an ideal choice for retrofitting projects and replacing aging boilers. These high-temperature heat pumps can be seamlessly integrated into your existing piping and radiator systems.

High-temperature heat pump water heaters are an advanced, energy-efficient solution designed to heat water to temperatures significantly higher than those achieved by standard heat pumps. These systems are particularly well-suited for applications requiring temperatures beyond the typical operating range of conventional heat pumps, such as industrial processes, commercial facilities, and specific residential uses.

High-temperature heat pumps are also suitable for applications including thermal oil storage, dairy processing, beverage production, breweries, sanitization in commercial kitchens, and the textile printing and dyeing industry. This represents the most energy-efficient and cost-effective method for heating water.

Features

Features:

1. Delivers hot water at temperatures up to 150°C

2. Equipped with a Copeland scroll compressor

3. Uses eco-friendly refrigerants (R134A, R1234ze)

4. High-efficiency heat exchanger

5. Intelligent defrosting system

Advantages:

1. Eco-friendly refrigerants (R1234ze, R134A): Utilizes refrigerants with a low Global Warming Potential (GWP) for energy-efficient heating.

2. A+ Energy Efficiency Rating: High efficiency ensures reduced electricity consumption.

3. Intelligent control options: Optional smart control features (such as "instant hot water" functionality) for enhanced convenience.

4. Premium components: Features compressors from Panasonic/Gree and valves from Sanhua.

5. Global certifications: Compliant with RoHS, CB, ISO9001, and CE standards.

Specifications

Stacked air source high-temperature steam heat pump(150℃ steam)
Model	FKH-18II/TGW	FKH-45II/TGW	FKH-65II/TGW	FKH-90II/TGW	FKH-130II/TGW	FKH-250I/TGW
Generate steam quantity	30kg	80kg	100kg	160kg	200kg	360kg
Power Specifications	380V 3N~50Hz	380V 3N~50Hz	380V 3N~50Hz	380V 3N~50Hz	380V 3N~50Hz	380V 3N~50Hz
A1 heating capacity(20℃	20KW	45KW	65KW	90KW	130KW	250KW
A1 Heating consumption power	12KW	28KW	40.5KW	56KW	81KW	165KW
Maximum operating current	30A	70A	120A	150A	200A	400A
Noise	≤72dB(A)	≤72dB(A)	≤75dB(A)	≤80dB(A)	≤80dB(A)	≤86dB(A)
Unit size(length x width x height mm)	1600×780×2000	2100×780×2000	3260×1030×2400	3260×1230×2400	3260×1230×2400	4000×2260×2600
Steam connection size	DN32	DN32	DN40	DN40	DN40	DN50
Size of water replenishment connection pipe	DN20	DN20	DN20	DN20	DN20	DN20
Unit weight (kg)	240	580	1180	1430	2100	5000
Price(usd)	6176	12500	16470	22058	30882	63235
The above perfomance parameters are formulated according to the requirements:
Operating conditions:ambient temperature of 20℃,steam temperature of 150℃; The minimum operating ambient temperature for this device is 15℃.
