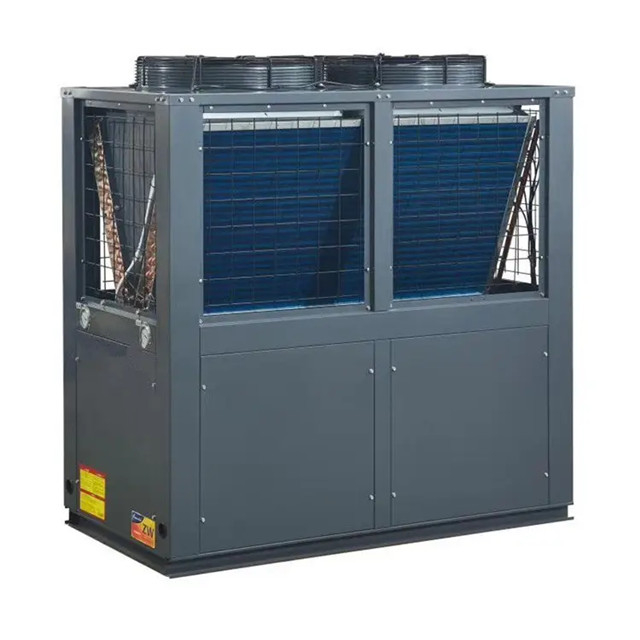

150°C Industrial Heat Pump for Hot Water and Steam

The Leomon high-temperature heat pump utilizes an intelligent temperature control system, capable of delivering water or steam at temperatures up to 150°C.

Brand:
Leomon

Quantity:
Availability:





Inquire Add to Basket

>> Product Description

The Leomon high-temperature heat pump utilizes an intelligent temperature control system, capable of delivering water or steam at temperatures up to 150°C.

This high-temperature heat pump is suitable for a wide range of commercial and industrial applications requiring high-temperature hot water or steam.

Features

Features:

1. Produces hot water and steam at temperatures up to 150°C

2. Equipped with a Copeland scroll compressor

3. Uses the eco-friendly refrigerant R1234ze

4. High-efficiency heat exchanger

5. Intelligent defrosting system

6. Remote control capabilities via mobile phone or computer

Advantages:

1. Utilizes R1233zd refrigerant with an ultra-low Global Warming Potential (GWP) – classified as A1 (safe for indoor installation)

2. Features a screw compressor specifically designed for high-temperature environments and heavy-duty, continuous operation

3. High-performance cooling system with an internal circuit

4. Maintains high efficiency even with minimal temperature differentials

5. Robust and durable shell-and-tube heat exchanger

Applications:

* Industrial process heating

* District heating networks

Specifications

Stacked air source high-temperature steam heat pump(150℃ steam)
Model	FKH-18II/TGW	FKH-45II/TGW	FKH-65II/TGW	FKH-90II/TGW	FKH-130II/TGW	FKH-250I/TGW
Generate steam quantity	30kg	80kg	100kg	160kg	200kg	360kg
Power Specifications	380V 3N~50Hz	380V 3N~50Hz	380V 3N~50Hz	380V 3N~50Hz	380V 3N~50Hz	380V 3N~50Hz
A1 heating capacity(20℃	20KW	45KW	65KW	90KW	130KW	250KW
A1 Heating consumption power	12KW	28KW	40.5KW	56KW	81KW	165KW
Maximum operating current	30A	70A	120A	150A	200A	400A
Noise	≤72dB(A)	≤72dB(A)	≤75dB(A)	≤80dB(A)	≤80dB(A)	≤86dB(A)
Unit size(length x width x height mm)	1600×780×2000	2100×780×2000	3260×1030×2400	3260×1230×2400	3260×1230×2400	4000×2260×2600
Steam connection size	DN32	DN32	DN40	DN40	DN40	DN50
Size of water replenishment connection pipe	DN20	DN20	DN20	DN20	DN20	DN20
Unit weight (kg)	240	580	1180	1430	2100	5000
Price(usd)	6176	12500	16470	22058	30882	63235
The above perfomance parameters are formulated according to the requirements:
Operating conditions:ambient temperature of 20℃,steam temperature of 150℃; The minimum operating ambient temperature for this device is 15℃.

Contact us

Please contact us if you require a high-temperature heat pump solution. Our heat pump experts are ready to provide you with the optimal solution for your needs.
