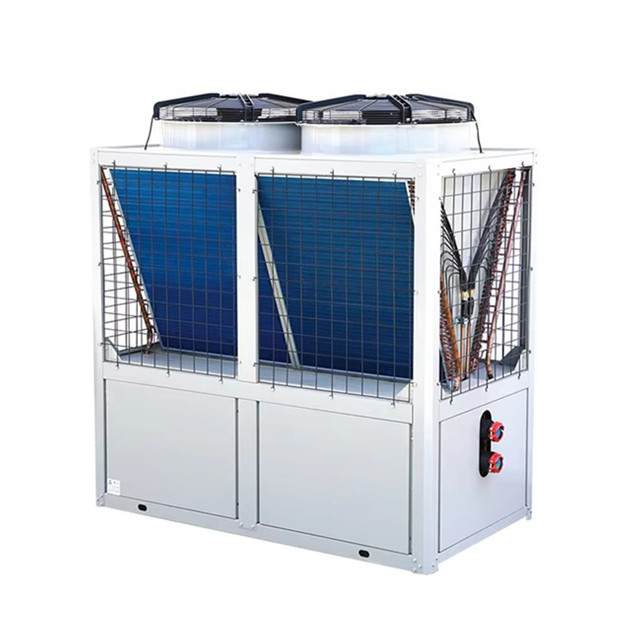

40kW Ultra Quiet 80°C Air Source Heat Pump

Air-source high-temperature heat pump water heaters can heat water up to 80°C, meeting demands for high-temperature hot water.

Brand:
Leomon

Quantity:
Availability:





Inquire Add to Basket

Ultra Quiet 80°C Air Source Heat Pump

>> Product Description

Air-source high-temperature heat pump water heaters can heat water up to 80°C, meeting demands for high-temperature hot water. They are an ideal choice for renovation projects and the replacement of aging boilers. These high-temperature heat pumps integrate seamlessly with your existing piping and radiators.

High-temperature heat pump water heaters are an advanced, energy-efficient solution designed to heat water to temperatures higher than those achieved by standard heat pumps. These systems are particularly well-suited for applications requiring water temperatures above the typical operating range of conventional heat pumps—such as industrial processes, commercial facilities, and specific residential uses.

High-temperature heat pumps are also suitable for thermal oil storage projects, dairy plants, beverage production, breweries, kitchen sterilization in restaurants, and the textile printing and dyeing industry. This represents the most energy-efficient and cost-effective method for heating water.

Features

Features:

1. Provides hot water at temperatures up to 80°C

2. Equipped with a Copeland scroll compressor

3. Uses eco-friendly R134A refrigerant

4. High-efficiency heat exchanger

5. Intelligent defrosting

Advantages:

1. Excellent performance under various operating conditions

The heat pump system efficiently provides space heating, cooling, and domestic hot water, even in extremely cold climates. It is well-suited for use across most regions of Europe.

2. High-quality compressor

Features a Panasonic compressor, ensuring reliable operation and creating an ideal, comfortable home environment.

3. EVI (Enhanced Vapor Injection) technology

Thanks to EVI technology, the system maintains outstanding heating performance in low-temperature environments. It can deliver 75°C hot water even when the outdoor temperature drops to -15°C, and it remains stable in extreme cold—down to as low as -30°C.

4. Comprehensive anti-freeze protection

The system automatically monitors the temperatures of the main unit and piping, utilizing multiple anti-freeze measures, including water pump circulation, system circulation, and base-pan heating. When the ambient temperature falls below 2°C and the water temperature drops below 7°C, the heat pump will automatically heat the water to 15°C, effectively preventing the system from freezing.

5. Intelligent Defrosting

Using multiple sensors to monitor operating temperatures in real time, the system performs intelligent defrosting based on actual requirements, avoiding unnecessary operation. This method is more efficient and energy-saving compared to scheduled (timed) defrosting.

Specifications

Type	FKH-12I/GW	FKH-20II/GW	FKH-40II/GW	FKH-80II/GW	FKH-110II/GW	FKH-140II/GW
Type	Side air outlet	Top out wind	Top out wind	Top out wind	Top out wind	Top out wind
Power specifications	220V～50Hz	380V 3N～50Hz	380V 3N～50Hz	380V 3N～50Hz	380V 3N～50Hz	380V 3N～50Hz
Heating capacity under A1 operating condition(20)	12kW	20kW	40kW	80kW	110kW	140kW
Heating consumption power under A1 working condition	4.8kW	8.2kW	16.2kW	32kW	44.5kW	56kW
Heating capacity under A2 working condition(7)	11.5kW	19kW	38kW	76kW	105kW	135kW
Heating consumption power under A2 working condition	5.3kW	8.7kW	17.5kW	34.5kW	48kW	61kW
Heating capacity under A3 working condition(-12)	10.5kW	17kW	35kW	65kW	90kW	110kW
Heating consumption power under A3 working condition	5.3kW	8.5kW	19kW	37.5kW	52kW	63.5kW
Heating capacity under A4working condition(-20)	9kW	15kW	30kW	58kW	80kW	100kW
Heating consumption power under A4 working condition	5.6kW	9.3kW	18.5kW	36kW	49.6kW	61.7kW
Maximum operating current	40A	35A	70A	120A	160A	200A
discharge	2.1m³/h	3.5m³/h	6.9m³/h	13.8m³/h	18.9m³/h	24.1m³/h
noise	≤56dB(A)	≤58dB(A)	≤60dB(A)	≤65dB(A)	≤68dB(A)	≤72dB(A)
Water side pressure loss	≤72kPa	≤75kPa	≤75kPa	≤85kPa	≤85kPa	≤88kPa
Unit size(length x width x height mm)	1030×410×1390	860×780×1780	1550×780×1780	2260×1030×2170	2260×1230×2170	2260×1230×2170
CONNECT SIZE	DN32(hexagon nipples )	DN32(hexagon nipples)	DN40(hexagon nipples)	DN50(flange)	DN65(flange)	DN80(flange)
Unit weight(kg)	160	212	412	750	1100	1250
