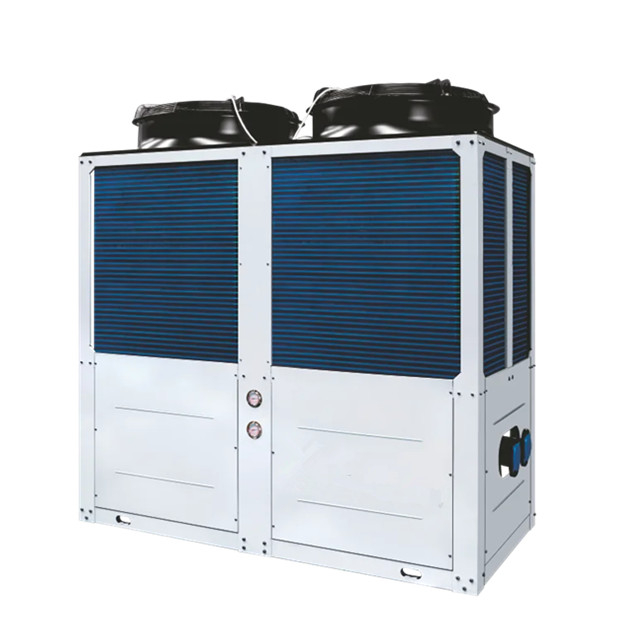

Air-source high-temperature heat pump water heaters can heat water up to 80°C, meeting demands for high-temperature hot water. They are an ideal choice for renovation projects and the replacement of aging boilers. These high-temperature heat pumps integrate seamlessly with your existing piping and radiators.
High-temperature heat pump water heaters are an advanced, energy-efficient solution designed to heat water to temperatures higher than those achieved by standard heat pumps. These systems are particularly well-suited for applications requiring water temperatures that exceed the typical operating range of conventional heat pumps—such as industrial processes, commercial facilities, and specific residential uses.
High-temperature heat pumps are also suitable for thermal oil storage projects, dairy processing plants, beverage production, breweries, kitchen sanitization in restaurants, and the textile printing and dyeing industry. This represents the most energy-efficient and cost-effective method for heating water.
Features:
1. Produces hot water at temperatures up to 80°C
2. Equipped with a Copeland scroll compressor
3. Uses eco-friendly R134A refrigerant
4. High-efficiency heat exchanger
5. Intelligent defrosting
Advantages:
1. Excellent performance under various operating conditions
The heat pump system provides efficient space heating, cooling, and domestic hot water, even in extremely cold climates. It is well-suited for use across most regions of Europe.
2. High-quality compressor
Features a Panasonic compressor, ensuring reliable operation and creating an ideal, comfortable indoor environment.
3. EVI (Enhanced Vapor Injection) technology
Thanks to EVI technology, the system maintains superior heating performance in low-temperature environments. It can deliver 75°C hot water even when the outdoor ambient temperature drops to -15°C, and it remains operational in extreme cold—down to -30°C.
4. Comprehensive anti-freeze protection
The system employs multiple anti-freeze measures—including water pump circulation, system-wide circulation, and base-pan heating—to automatically monitor the temperatures of the main unit and the piping. When the ambient temperature falls below 2°C and the water temperature drops below 7°C, the heat pump will automatically heat the water to 15°C, effectively preventing the system from freezing.
5. Intelligent Defrosting
Using multiple sensors to monitor operating temperatures in real time, the system performs intelligent defrosting based on actual requirements, avoiding unnecessary operation. This method is more efficient and energy-saving compared to scheduled (timed) defrosting.
Type | FKH-12I/GW | FKH-20II/GW | FKH-40II/GW | FKH-80II/GW | FKH-110II/GW | FKH-140II/GW |
Side air outlet | Top out wind | Top out wind | Top out wind | Top out wind | Top out wind | |
Power specifications | 220V～50Hz | 380V 3N～50Hz | 380V 3N～50Hz | 380V 3N～50Hz | 380V 3N～50Hz | 380V 3N～50Hz |
Heating capacity under A1 | 12kW | 20kW | 40kW | 80kW | 110kW | 140kW |
Heating consumption power under | 4.8kW | 8.2kW | 16.2kW | 32kW | 44.5kW | 56kW |
Heating capacity under A2 | 11.5kW | 19kW | 38kW | 76kW | 105kW | 135kW |
Heating consumption power under | 5.3kW | 8.7kW | 17.5kW | 34.5kW | 48kW | 61kW |
Heating capacity under A3 |
| 17kW | 35kW | 65kW | 90kW | 110kW |
Heating consumption power |
| 8.5kW | 19kW | 37.5kW | 52kW | 63.5kW |
Heating capacity under A4working |
| 15kW | 30kW | 58kW | 80kW | 100kW |
Heating consumption power |
| 9.3kW | 18.5kW | 36kW | 49.6kW | 61.7kW |
Maximum operating current | 40A | 35A | 70A | 120A | 160A | 200A |
discharge | 2.1m³/h | 3.5m³/h | 6.9m³/h | 13.8m³/h | 18.9m³/h | 24.1m³/h |
noise | ≤56dB(A) | ≤58dB(A) | ≤60dB(A) | ≤65dB(A) | ≤68dB(A) | ≤72dB(A) |
Water side pressure loss | ≤72kPa | ≤75kPa | ≤75kPa | ≤85kPa | ≤85kPa | ≤88kPa |
Unit size(length x width x height mm) | 1030×410×1390 | 860×780×1780 | 1550×780×1780 | 2260×1030×2170 | 2260×1230×2170 | 2260×1230×2170 |
CONNECT SIZE | DN32(hexagon nipples ) | DN32(hexagon | DN40(hexagon | DN50(flange) | DN65(flange) | DN80(flange) |
Unit weight(kg) | 160 | 212 | 412 | 750 | 1100 | 1250 |
If you are looking for a high-temperature heat pump solution, please contact us. Our heat pump experts are ready to provide you with the optimal solution for your needs.
