Leomon
| Availability: | |
|---|---|
| Quantity: | |

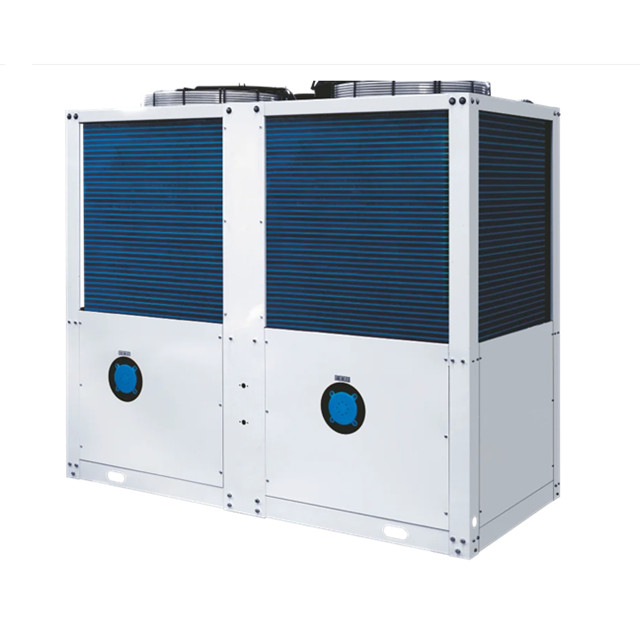

Air-source high-temperature heat pump water heaters can heat water up to 80°C, meeting demands for high-temperature hot water. They are an ideal choice for renovation projects and the replacement of aging boilers. These high-temperature heat pumps integrate seamlessly with your existing piping and radiators.
High-temperature heat pump water heaters are an advanced, energy-efficient solution designed to heat water to temperatures higher than those achieved by standard heat pumps. These systems are particularly well-suited for applications requiring water temperatures that exceed the typical operating range of conventional heat pumps—such as industrial processes, commercial facilities, and specific residential uses.
High-temperature heat pumps are also suitable for thermal oil storage projects, dairy processing plants, beverage production, breweries, kitchen sanitization in restaurants, and the textile printing and dyeing industry. This represents the most energy-efficient and cost-effective method for heating water.
Advantages
1. Ultra-High 80°C Water Outlet Temperature
This heat pump is capable of delivering 80°C hot water while maintaining exceptional performance, even in extremely low ambient temperatures. Its heating capacity at an ambient temperature of -30°C is over 65% higher than its capacity at 7°C.
2. Ultra-Low Temperature Operation (Down to -40°C)
The high-temperature heat pump operates reliably in outdoor temperatures as low as -40°C. Even at an ambient temperature of -30°C, it maintains a Coefficient of Performance (COP) of 1.9.
3. Stable Hot Water Supply in Cold Climates
Designed specifically for users in cold regions with high hot-water demand, this system is specially engineered to ensure a stable supply of high-temperature water, regardless of harsh, cold weather conditions.
4. Customized Refrigerant Blend
A unique feature of this high-temperature heat pump is its use of a specialized dual-refrigerant system. The specific composition and mixing ratio of these refrigerants are factory-customized and not available as off-the-shelf products.
5. Intelligent Defrosting Technology
The unit incorporates an intelligent defrosting program that operates automatically—without the need for manual intervention—and completes the defrost cycle more rapidly.
Type | FKH-12I/GW | FKH-20II/GW | FKH-40II/GW | FKH-80II/GW | FKH-110II/GW | FKH-140II/GW |
Side air outlet | Top out wind | Top out wind | Top out wind | Top out wind | Top out wind | |
Power specifications | 220V～50Hz | 380V 3N～50Hz | 380V 3N～50Hz | 380V 3N～50Hz | 380V 3N～50Hz | 380V 3N～50Hz |
Heating capacity under A1 | 12kW | 20kW | 40kW | 80kW | 110kW | 140kW |
Heating consumption power under | 4.8kW | 8.2kW | 16.2kW | 32kW | 44.5kW | 56kW |
Heating capacity under A2 | 11.5kW | 19kW | 38kW | 76kW | 105kW | 135kW |
Heating consumption power under | 5.3kW | 8.7kW | 17.5kW | 34.5kW | 48kW | 61kW |
Heating capacity under A3 |
| 17kW | 35kW | 65kW | 90kW | 110kW |
Heating consumption power |
| 8.5kW | 19kW | 37.5kW | 52kW | 63.5kW |
Heating capacity under A4working |
| 15kW | 30kW | 58kW | 80kW | 100kW |
Heating consumption power |
| 9.3kW | 18.5kW | 36kW | 49.6kW | 61.7kW |
Maximum operating current | 40A | 35A | 70A | 120A | 160A | 200A |
discharge | 2.1m³/h | 3.5m³/h | 6.9m³/h | 13.8m³/h | 18.9m³/h | 24.1m³/h |
noise | ≤56dB(A) | ≤58dB(A) | ≤60dB(A) | ≤65dB(A) | ≤68dB(A) | ≤72dB(A) |
Water side pressure loss | ≤72kPa | ≤75kPa | ≤75kPa | ≤85kPa | ≤85kPa | ≤88kPa |
Unit size(length x width x height mm) | 1030×410×1390 | 860×780×1780 | 1550×780×1780 | 2260×1030×2170 | 2260×1230×2170 | 2260×1230×2170 |
CONNECT SIZE | DN32(hexagon nipples ) | DN32(hexagon | DN40(hexagon | DN50(flange) | DN65(flange) | DN80(flange) |
Unit weight(kg) | 160 | 212 | 412 | 750 | 1100 | 1250 |
If you are looking for a high-temperature heat pump solution, please contact us. Our team of heat pump experts is ready to provide you with the optimal solution for your needs.
