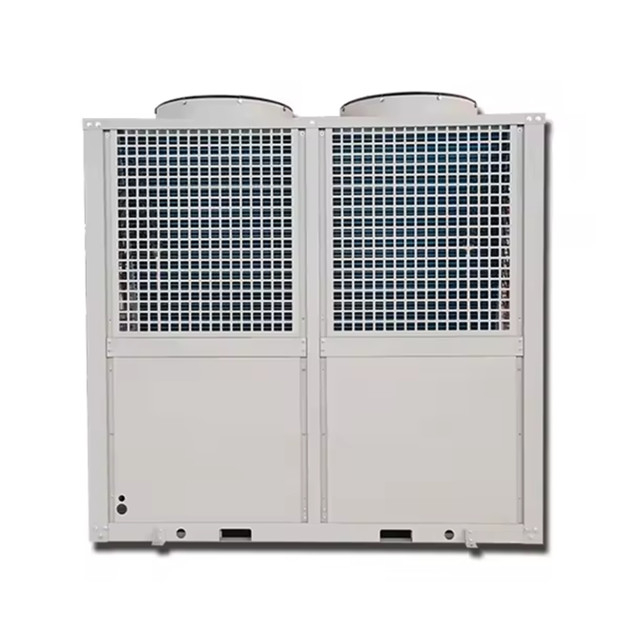

80 Degree High Temperature Series

Leomon high-temperature heat pumps feature an intelligent temperature control system capable of delivering water temperatures as high as 80°C.

Brand:
Leomon

Quantity:
Availability:





Inquire Add to Basket

>> Product Description

Leomon high-temperature heat pumps feature an intelligent temperature control system capable of delivering water temperatures as high as 80°C.

Designed for applications where standard heat pumps fall short, this high-temperature model is ideal for direct boiler replacement or for providing high-temperature domestic hot water.

Leomon units can operate in temperatures as low as -30°C (-22°F) while remaining more energy-efficient than conventional electric boilers.

Features

Features

1. Exceptional Performance in Diverse Conditions

This heat pump system provides efficient home heating, cooling, and domestic hot water, even in extremely cold climates—making it well-suited for most regions in Europe.

2. High-Quality Compressor

Equipped with a Panasonic compressor, the system ensures reliable operation, creating an ideal, comfortable home environment.

3. EVI (Enhanced Vapor Injection) Technology

Thanks to EVI technology, the system maintains outstanding heating performance in low-temperature environments. It can deliver 80°C hot water even when the outdoor temperature drops to -15°C, and it continues to operate stably in extreme cold—down to -30°C.

4. Comprehensive Anti-Freeze Protection

Utilizing multiple anti-freeze measures—including water pump circulation, system circulation, and chassis heating—the unit automatically monitors the temperatures of the main unit and its piping. If the ambient temperature falls below 2°C and the water temperature drops below 7°C, the heat pump will automatically heat the water to 15°C, effectively preventing the system from freezing.

5. Intelligent Defrosting

Multiple sensors monitor operating temperatures in real-time, triggering the defrost cycle only when actually needed. This intelligent approach avoids unnecessary operation, making it far more efficient and energy-saving than fixed-interval defrosting.

Specifications

Type	FKH-12I/GW	FKH-20II/GW	FKH-40II/GW	FKH-80II/GW	FKH-110II/GW	FKH-140II/GW
Type	Side air outlet	Top out wind	Top out wind	Top out wind	Top out wind	Top out wind
Power specifications	220V～50Hz	380V 3N～50Hz	380V 3N～50Hz	380V 3N～50Hz	380V 3N～50Hz	380V 3N～50Hz
Heating capacity under A1 operating condition(20)	12kW	20kW	40kW	80kW	110kW	140kW
Heating consumption power under A1 working condition	4.8kW	8.2kW	16.2kW	32kW	44.5kW	56kW
Heating capacity under A2 working condition(7)	11.5kW	19kW	38kW	76kW	105kW	135kW
Heating consumption power under A2 working condition	5.3kW	8.7kW	17.5kW	34.5kW	48kW	61kW
Heating capacity under A3 working condition(-12)	10.5kW	17kW	35kW	65kW	90kW	110kW
Heating consumption power under A3 working condition	5.3kW	8.5kW	19kW	37.5kW	52kW	63.5kW
Heating capacity under A4working condition(-20)	9kW	15kW	30kW	58kW	80kW	100kW
Heating consumption power under A4 working condition	5.6kW	9.3kW	18.5kW	36kW	49.6kW	61.7kW
Maximum operating current	40A	35A	70A	120A	160A	200A
discharge	2.1m³/h	3.5m³/h	6.9m³/h	13.8m³/h	18.9m³/h	24.1m³/h
noise	≤56dB(A)	≤58dB(A)	≤60dB(A)	≤65dB(A)	≤68dB(A)	≤72dB(A)
Water side pressure loss	≤72kPa	≤75kPa	≤75kPa	≤85kPa	≤85kPa	≤88kPa
Unit size(length x width x height mm)	1030×410×1390	860×780×1780	1550×780×1780	2260×1030×2170	2260×1230×2170	2260×1230×2170
CONNECT SIZE	DN32(hexagon nipples )	DN32(hexagon nipples)	DN40(hexagon nipples)	DN50(flange)	DN65(flange)	DN80(flange)
Unit weight(kg)	160	212	412	750	1100	1250
