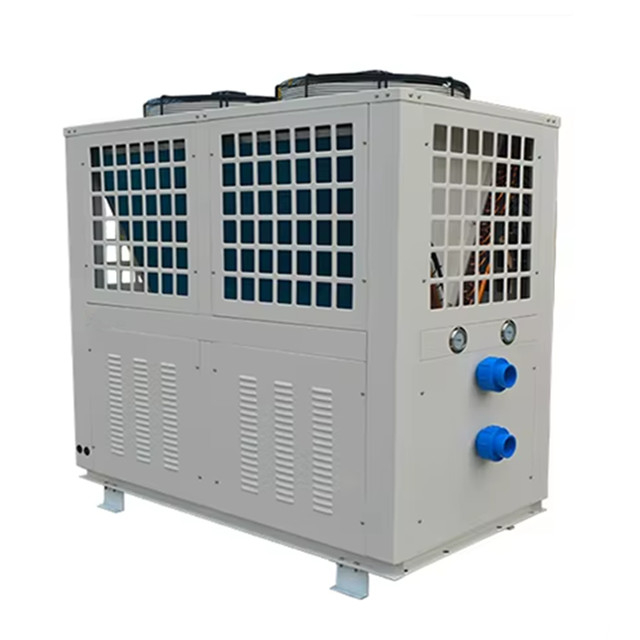

Leomon’s high-temperature heat pump is an air-source water heating system designed primarily for commercial and select industrial applications. It is engineered specifically to produce high-temperature hot water, reaching up to 85°C.
Our high-temperature heat pumps are highly valued by users in cold regions—where winter temperatures can drop as low as -30°C—who require a consistent daily supply of hot water. Typical users include schools, hospitals, hotels, restaurants, fitness centers, and various industrial facilities.
Advantages
1. Ultra-High 85°C Water Outlet Temperature
This heat pump is capable of delivering 85°C hot water while maintaining exceptional performance, even in extremely low ambient temperatures. In fact, its heating capacity at an ambient temperature of -30°C is more than 65% higher than its capacity at 7°C.
2. Ultra-Low Temperature Operation (Down to -40°C)
The unit operates reliably in outdoor temperatures as low as -40°C. Even at an ambient temperature of -30°C, it maintains a Coefficient of Performance (COP) of 1.9.
3. Stable Hot Water Supply in Cold Climates
Designed specifically for users in cold regions with high hot-water demand, this system features specialized engineering to ensure a stable supply and high-temperature output, even in harsh, freezing weather.
4. Customized Refrigerant Blend
A unique feature of this system is its use of a specialized dual-refrigerant blend. The specific composition and mixing ratio are factory-customized and not available as a standard off-the-shelf product.
5. Intelligent Defrosting Technology
The unit incorporates an intelligent defrosting program that operates automatically—requiring no manual intervention—and completes the defrost cycle more rapidly.
Type | FKH-10I/CGW | FKH-18II/CGW | FKH-35II/CGW | FKH-70II/CGW | FKH-100II/CGW | FKH-130II/CGW |
Side air outlet | Top out wind | Top out wind | Top out wind | Top out wind | Top out wind | |
Power specifications | 220V~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz |
Heating capacity under A1 | 10kW | 18kW | 35kW | 70kW | 100kW | 130kW |
Heating consumption power under A1 | 4.8kW | 8.2kW | 16.8kW | 33.6kW | 47.6kW | 61.5kW |
Heating capacity under A2 working | 9.5kW | 17kW | 34kW | 68kW | 95kW | 125kW |
Heating consumption power under A2 | 5kW | 8.9kW | 17.9kW | 35.8kW | 50kW | 65.8kW |
Heating capacity under A3 working | 9.5kW | 17kW | 32kW | 64kW | 90kW | 110kW |
Heating consumption power | 6.2kW | 10.6kW | 20.6kW | 41.2kW | 56.5kW | 68.5kW |
Heating capacity under A4working | 8kW | 16kW | 30kW | 60kW | 80kW | 100kW |
Heating consumption power | 5.6kW | 11.1kW | 20.1kW | 40.2kW | 55.2kW | 68.9kW |
Maximum operating current | 40A | 35A | 70A | 120A | 160A | 200A |
discharge | 1.7m³/h | 3.1m³/h | 6m³/h | 12m³/h | 17.2m³/h | 24.1m³/h |
noise | ≤56dB(A) | ≤58dB(A) | ≤60dB(A) | ≤65dB(A) | ≤68dB(A) | ≤72dB(A) |
Water side pressure loss | ≤72kPa | ≤75kPa | ≤75kPa | ≤85kPa | ≤85kPa | ≤88kPa |
Unit size (length ×widthx height mm) | 1030×410×1390 | 860×780×1780 | 1550×780×1780 | 2260×1030×2170 | 2260×1230×2170 | 2260×1230×2170 |
CONNECT SIZE | DN32(hexagon | DN32(hexagon | DN40(hexagon | DN50(flange) | DN65(flange) | DN80(flange) |
Unit weight(kg) | 160 | 215 | 415 | 755 | 1110 | 1250 |
If you are looking for a high-temperature heat pump solution, please contact us. Our team of heat pump experts will provide you with the optimal solution for your needs.
