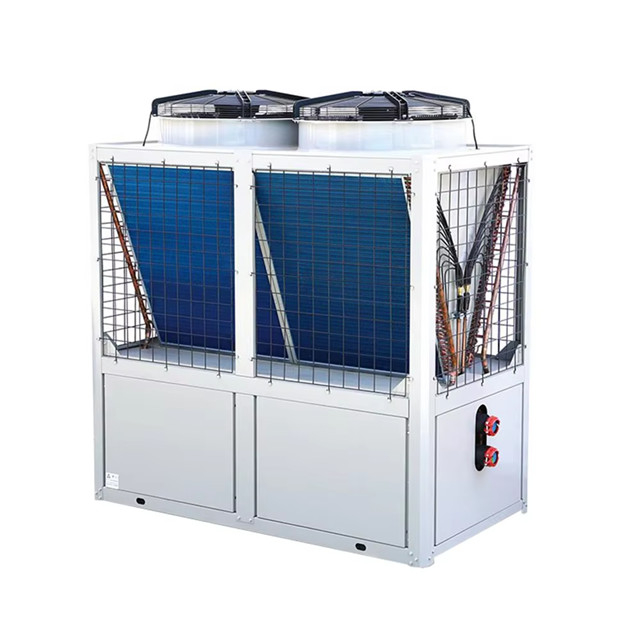

The Leomon high-temperature heat pump features an intelligent temperature control system, capable of delivering water temperatures of up to 85°C.
This high-temperature heat pump is suitable for applications where most other heat pumps fall short—such as serving as a direct replacement for boilers or providing high-temperature domestic hot water.
Leomon can operate in ambient temperatures as low as -30°C (-22°F) while remaining more energy-efficient than traditional electric boilers.
Features
1. WiFi remote control
2. IoT management
3. Power consumption monitoring
4. MODBUS communication
5. Low-noise operation
6. Stable operation down to -25°C
7. Maximum water outlet temperature of 85°C
Advantages
1. Excellent performance under various operating conditions
The heat pump system provides efficient space heating, cooling, and domestic hot water, even in extremely cold climates. It is well-suited for use across most regions in Europe.
2. High-quality compressor
Equipped with a Panasonic compressor, the system ensures reliable operation, creating an ideal, comfortable home environment.
3. EVI (Enhanced Vapor Injection) technology
Thanks to EVI technology, the system maintains superior heating performance in low-temperature environments. It can deliver 80°C hot water even when the outdoor ambient temperature drops to -15°C, and it continues to operate stably in extreme cold—down to -30°C.
4. Multi-layered anti-freeze protection
Utilizing multiple anti-freeze mechanisms—including water pump circulation, system circulation, and chassis heating—the unit automatically monitors the temperatures of the main unit and piping. If the ambient temperature falls below 2°C and the water temperature drops below 7°C, the heat pump will automatically initiate heating to 15°C, effectively preventing the system from freezing.
5. Intelligent defrosting
Using multiple sensors to monitor operating temperatures in real-time, the system performs intelligent defrosting based on actual demand rather than a fixed schedule. This approach is more efficient and energy-saving than timer-based defrosting. Specifications
Type | FKH-10I/CGW | FKH-18II/CGW | FKH-35II/CGW | FKH-70II/CGW | FKH-100II/CGW | FKH-130II/CGW |
Side air outlet | Top out wind | Top out wind | Top out wind | Top out wind | Top out wind | |
Power specifications | 220V～50Hz | 380V 3N～50Hz | 380V 3N～50Hz | 380V 3N～50Hz | 380V 3N~50Hz | 380V 3N～50Hz |
Heating capacity under A1 | 10kW | 18kW | 35kW | 70kW | 100kW | 130kW |
Heating consumption power under A1 | 4.8kW | 8.2kW | 16.8kW | 33.6kW | 47.6kW | 61.5kW |
Heating capacity under A2 working | 9.5kW | 17kW | 34kW | 68kW | 95kW | 125kW |
Heating consumption power under A2 | 5kW | 8.9kW | 17.9kW | 35.8kW | 50kW | 65.8kW |
Heating capacity under A3 working | 9.5kW | 17kW | 32kW | 64kW | 90kW | 110kW |
Heating consumption power | 6.2kW | 10.6kW | 20.6kW | 41.2kW | 56.5kW | 68.5kW |
Heating capacity under A4working | 8kW | 16kW | 30kW | 60kW | 80kW | 100kW |
Heating consumption power | 5.6kW | 11.1kW | 20.1kW | 40.2kW | 55.2kW | 68.9kW |
Maximum operating current | 40A | 35A | 70A | 120A | 160A | 200A |
discharge | 1.7m³/h | 3.1m³/h | 6m³/h | 12m³/h | 17.2m³/h | 24.1m³/h |
noise | ≤56dB(A) | ≤58dB(A) | ≤60dB(A) | ≤65dB(A) | ≤68dB(A) | ≤72dB(A) |
Water side pressure loss | ≤72kPa | ≤75kPa | ≤75kPa | ≤85kPa | ≤85kPa | ≤88kPa |
Unit size (length ×widthx height mm) | 1030×410×1390 | 860×780×1780 | 1550×780×1780 | 2260×1030×2170 | 2260×1230×2170 | 2260×1230×2170 |
CONNECT SIZE | DN32(hexagon | DN32(hexagon | DN40(hexagon | DN50(flange) | DN65(flange) | DN80(flange) |
Unit weight(kg) | 160 | 215 | 415 | 755 | 1110 | 1250 |
