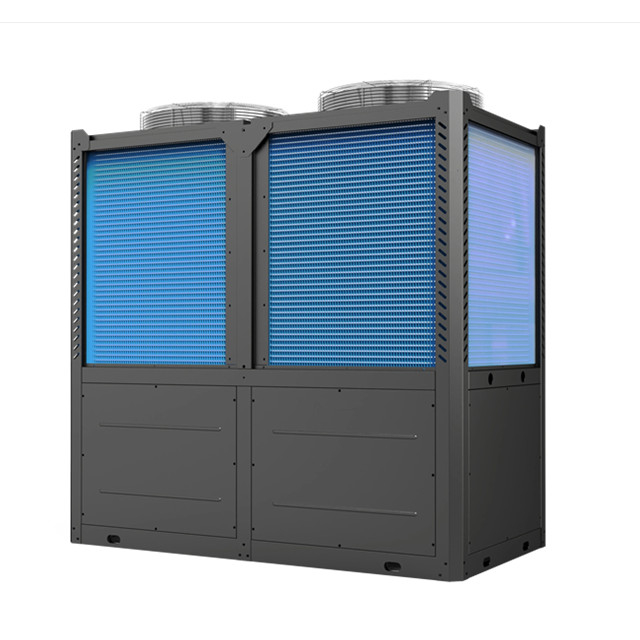

90° Very High Temperature Water Source Heat Pumps

These high-temperature heat pumps offer robust performance and exceptional stability, capable of delivering water at temperatures up to 90°C.

Brand:
Leomon

Quantity:
Availability:





Inquire Add to Basket

>> Product Description

These high-temperature heat pumps offer robust performance and exceptional stability, capable of delivering water at temperatures up to 90°C. This is achieved through the use of specialized heat-pump compressors and intelligent temperature control systems.

These advanced technologies enhance system stability. Furthermore, the use of R134a or R1234ze refrigerants allows for higher condensing temperatures, which in turn boosts the water outlet temperature. The integration of a variable-frequency control system further improves stability during high-temperature operation, while also enhancing energy efficiency and environmental friendliness.

Additionally, the heat pump includes an auxiliary electric heating function—available for both space heating and hot water modes—to supplement the unit’s heating capacity and meet diverse user requirements.

Features

Features

1. Ultra-low Global Warming Potential (GWP) R1234ze refrigerant

2. Screw-type compressor specifically designed for continuous, heavy-duty, high-temperature operation

3. Cooling system with an internal circuit

4. Robust and durable shell-and-tube heat exchanger

Advantages

1. Water-based circulation system provides comfortable, non-drying heating and cool, draft-free cooling.

2. The unit automatically adjusts its load based on indoor and ambient temperature fluctuations, maximizing both user comfort and energy efficiency.

3. Equipped with specialized heat-pump compressors and intelligent temperature control systems to ensure system stability, with water outlet temperatures reaching up to 90°C.

4. The unit automatically monitors ambient and pipeline temperatures to prevent frost buildup on pipes and fins; it initiates a defrost cycle only when frost is detected.

Specifications

Type	FKH-10I/CGW	FKH-18II/CGW	FKH-35II/CGW	FKH-70II/CGW	FKH-100II/CGW	FKH-130II/CGW
Type	Side air outlet	Top out wind	Top out wind	Top out wind	Top out wind	Top out wind
Power specifications	220V～50Hz	380V 3N～50Hz	380V 3N～50Hz	380V 3N～50Hz	380V 3N~50Hz	380V 3N～50Hz
Heating capacity under A1 operating condition(20)	10kW	18kW	35kW	70kW	100kW	130kW
Heating consumption power under A1 working condition	4.8kW	8.2kW	16.8kW	33.6kW	47.6kW	61.5kW
Heating capacity under A2 working condition(7)	9.5kW	17kW	34kW	68kW	95kW	125kW
Heating consumption power under A2 working condition	5kW	8.9kW	17.9kW	35.8kW	50kW	65.8kW
Heating capacity under A3 working condition(-12)	9.5kW	17kW	32kW	64kW	90kW	110kW
Heating consumption power under A3 working condition	6.2kW	10.6kW	20.6kW	41.2kW	56.5kW	68.5kW
Heating capacity under A4working condition(-20)	8kW	16kW	30kW	60kW	80kW	100kW
Heating consumption power under A4 working condition	5.6kW	11.1kW	20.1kW	40.2kW	55.2kW	68.9kW
Maximum operating current	40A	35A	70A	120A	160A	200A
discharge	1.7m³/h	3.1m³/h	6m³/h	12m³/h	17.2m³/h	24.1m³/h
noise	≤56dB(A)	≤58dB(A)	≤60dB(A)	≤65dB(A)	≤68dB(A)	≤72dB(A)
Water side pressure loss	≤72kPa	≤75kPa	≤75kPa	≤85kPa	≤85kPa	≤88kPa
Unit size (length ×widthx height mm)	1030×410×1390	860×780×1780	1550×780×1780	2260×1030×2170	2260×1230×2170	2260×1230×2170
CONNECT SIZE	DN32(hexagon nipples))	DN32(hexagon nipples))	DN40(hexagon nipples)	DN50(flange)	DN65(flange)	DN80(flange)
Unit weight(kg)	160	215	415	755	1110	1250
