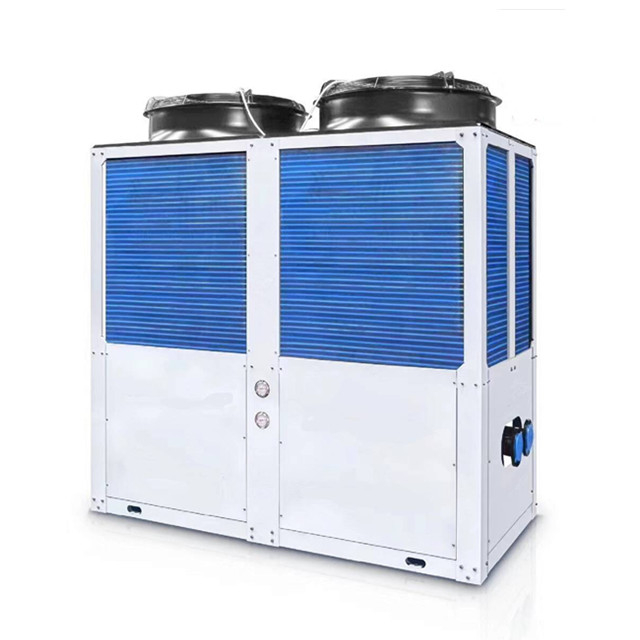

Air Source 135°C Hot Water Industrial High Temperature Heat Pump

Leomon high-temperature heat pumps provide hot water and steam at temperatures up to 135°C.

Brand:
Leomon

Quantity:
Availability:





Inquire Add to Basket

135°C Hot Water Industrial High Temperature Heat Pump

>> Product Description

Leomon high-temperature heat pumps provide hot water and steam at temperatures up to 135°C. Designed for industrial and commercial applications that require a consistent supply of high-temperature hot water, these systems help reduce reliance on traditional heating methods powered by electricity, gas, or fossil fuels.

Leomon units can operate in ambient temperatures as low as -30°C (-22°F) while remaining more energy-efficient than conventional electric boilers.

Features

Applications:

* Textile Dyeing

* Food Processing

* Beverage Production

* Electroplating

* Chemical Processing

* Pharmaceutical Manufacturing

* Industrial Cleaning

* Space Heating

* Commercial Hot Water Systems

Features

1. High Energy Efficiency

2. Reliable Operation

3. Intelligent Control System

4. Easy Installation and Maintenance

5. Specialized Design

Advantages

1. Eco-friendly Refrigerants (R1234ze, R134A): Utilizes refrigerants with a low Global Warming Potential (GWP) for energy-efficient heating.

2. A+ Energy Efficiency Rating: High efficiency ensures lower power consumption.

3. Intelligent Control Options: Optional "zero-cold-water" (instant hot water) control for enhanced convenience.

4. Premium Components: Equipped with compressors from Panasonic/Gree and valves from Sanhua.

5. Global Certifications: Compliant with RoHS, CB, ISO9001, and CE standards.

Specifications

Stacked air source high-temperature steam heat pump(150℃ steam)
Model	FKH-18II/TGW	FKH-45II/TGW	FKH-65II/TGW	FKH-90II/TGW	FKH-130II/TGW	FKH-250I/TGW
Generate steam quantity	30kg	80kg	100kg	160kg	200kg	360kg
Power Specifications	380V 3N~50Hz	380V 3N~50Hz	380V 3N~50Hz	380V 3N~50Hz	380V 3N~50Hz	380V 3N~50Hz
A1 heating capacity(20℃	20KW	45KW	65KW	90KW	130KW	250KW
A1 Heating consumption power	12KW	28KW	40.5KW	56KW	81KW	165KW
Maximum operating current	30A	70A	120A	150A	200A	400A
Noise	≤72dB(A)	≤72dB(A)	≤75dB(A)	≤80dB(A)	≤80dB(A)	≤86dB(A)
Unit size(length x width x height mm)	1600×780×2000	2100×780×2000	3260×1030×2400	3260×1230×2400	3260×1230×2400	4000×2260×2600
Steam connection size	DN32	DN32	DN40	DN40	DN40	DN50
Size of water replenishment connection pipe	DN20	DN20	DN20	DN20	DN20	DN20
Unit weight (kg)	240	580	1180	1430	2100	5000
Price(usd)	6176	12500	16470	22058	30882	63235
The above perfomance parameters are formulated according to the requirements:
Operating conditions:ambient temperature of 20℃,steam temperature of 150℃; The minimum operating ambient temperature for this device is 15℃.
