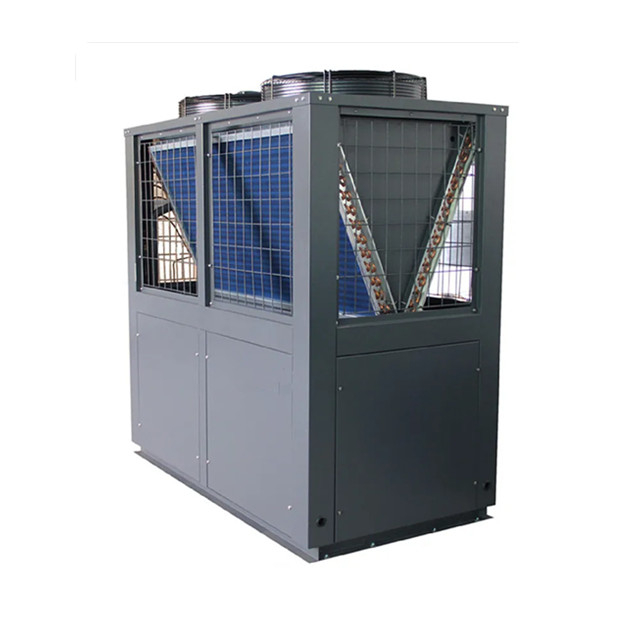

Air Source Heat Pump 4-50kW with 75C Water Output

This high-temperature heat pump (75°C) delivers robust performance and exceptional stability, capable of reaching a maximum water outlet temperature of 75°C.

Brand:
Leomon

Quantity:
Availability:





Inquire Add to Basket

Air Source Heat Pump

>> Product Description

This high-temperature heat pump (75°C) delivers robust performance and exceptional stability, capable of reaching a maximum water outlet temperature of 75°C. This is achieved through the use of a specialized heat pump compressor and an intelligent temperature control system.

These advanced technologies enhance system stability. Furthermore, the use of R134A refrigerant allows for a higher condensation temperature, which in turn boosts the water outlet temperature. An integrated variable-frequency (inverter) control system further improves stability during high-temperature operation, while also enhancing energy efficiency and environmental friendliness.

Additionally, the heat pump features an auxiliary electric heating function—available in both heating and hot water modes—to supplement the unit’s heating capacity and meet diverse user requirements.

Features

Advantages:

1. Water-based circulation system: provides comfortable, non-drying heating and cool, draft-free cooling.

2. Automatic load adjustment: the unit dynamically adapts to changes in indoor and ambient temperatures, maximizing user comfort and energy efficiency.

3. High-performance design: equipped with a specialized heat pump compressor and an intelligent temperature control system, ensuring stable operation with a maximum water outlet temperature of 75°C.

4. Intelligent frost management: the unit automatically monitors ambient and pipe temperatures; it initiates a defrost cycle only when frost is detected, ensuring efficient operation.

Key Components

1. Sanhua electronic expansion valve: features PID control for high-precision regulation.

2. Plate heat exchanger: constructed from SUS316 stainless steel for superior corrosion resistance.

Specifications

Type	FKH-12I/GW	FKH-20II/GW	FKH-40II/GW
Type	Side air outlet	Top out wind	Top out wind
Power specifications	220V～50Hz	380V 3N～50Hz	380V 3N～50Hz
Heating capacity under A1 operating condition(20)	12kW	20kW	40kW
Heating consumption power under A1 working condition	4.8kW	8.2kW	16.2kW
Heating capacity under A2 working condition(7)	11.5kW	19kW	38kW
Heating consumption power under A2 working condition	5.3kW	8.7kW	17.5kW
Heating capacity under A3 working condition(-12)	10.5kW	17kW	35kW
Heating consumption power under A3 working condition	5.3kW	8.5kW	19kW
Heating capacity under A4working condition(-20)	9kW	15kW	30kW
Heating consumption power under A4 working condition	5.6kW	9.3kW	18.5kW
Maximum operating current	40A	35A	70A
discharge	2.1m³/h	3.5m³/h	6.9m³/h
noise	≤56dB(A)	≤58dB(A)	≤60dB(A)
Water side pressure loss	≤72kPa	≤75kPa	≤75kPa
Unit size(length x width x height mm)	1030×410×1390	860×780×1780	1550×780×1780
CONNECT SIZE	DN32(hexagon nipples )	DN32(hexagon nipples)	DN40(hexagon nipples)
Unit weight(kg)	160	212	412

Contact us

If you are looking for a high-temperature heat pump solution, please contact us. Our heat pump experts are ready to provide you with the optimal solution.
