Leomon
| Availability: | |
|---|---|
| Quantity: | |

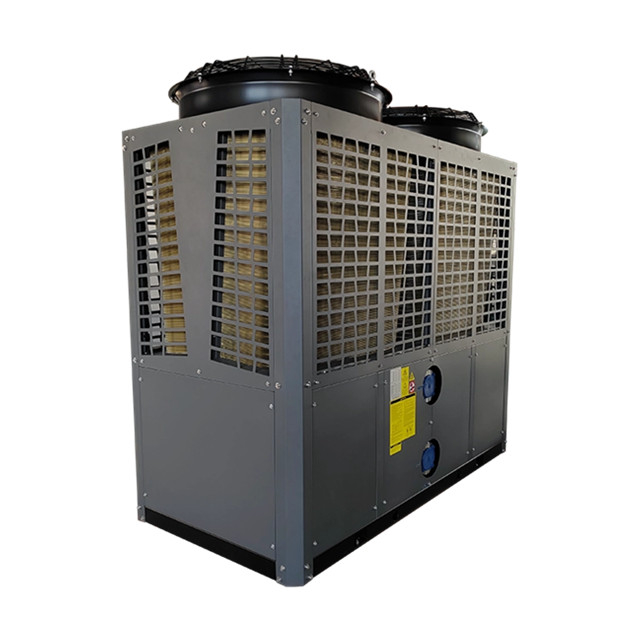

Leomon high-temperature heat pumps deliver water temperatures of up to 100°C. Designed specifically for industrial and commercial applications that require a consistent supply of high-temperature hot water, these units help reduce reliance on traditional heating systems powered by electricity, gas, or fossil fuels.
Leomon heat pumps can operate in ambient temperatures as low as -30°C (-22°F) while remaining more energy-efficient than conventional electric boilers.
Applications:
* Textile dyeing
* Food processing
* Beverage production
* Electroplating
* Chemical processing
* Pharmaceutical manufacturing
* Industrial cleaning
* Space heating
* Commercial hot water systems
Features
1. High energy efficiency
2. Reliable operation
3. Intelligent control system
4. Easy installation and maintenance
5. Specialized design
Advantages
1. Eco-friendly refrigerants (R1234ze, R134A): Utilizes refrigerants with a low Global Warming Potential (GWP) for energy-efficient heating.
2. A+ Energy Efficiency Rating: High efficiency ensures lower power consumption.
3. Intelligent Control Options: Features an optional "zero-cold-water" (instant hot water) smart control function for greater convenience.
4. Premium Components: Equipped with compressors from Panasonic/Gree and valves from Sanhua.
5. Global Certifications: Compliant with RoHS, CB, ISO9001, and CE standards.
Type | FKH-10I/CGW | FKH-18II/CGW | FKH-35II/CGW | FKH-70II/CGW | FKH-100II/CGW | FKH-130II/CGW |
Side air outlet | Top out wind | Top out wind | Top out wind | Top out wind | Top out wind | |
Power specifications | 220V～50Hz | 380V 3N～50Hz | 380V 3N～50Hz | 380V 3N～50Hz | 380V 3N~50Hz | 380V 3N～50Hz |
Heating capacity under A1 | 10kW | 18kW | 35kW | 70kW | 100kW | 130kW |
Heating consumption power under A1 | 4.8kW | 8.2kW | 16.8kW | 33.6kW | 47.6kW | 61.5kW |
Heating capacity under A2 working | 9.5kW | 17kW | 34kW | 68kW | 95kW | 125kW |
Heating consumption power under A2 | 5kW | 8.9kW | 17.9kW | 35.8kW | 50kW | 65.8kW |
Heating capacity under A3 working | 9.5kW | 17kW | 32kW | 64kW | 90kW | 110kW |
Heating consumption power | 6.2kW | 10.6kW | 20.6kW | 41.2kW | 56.5kW | 68.5kW |
Heating capacity under A4working | 8kW | 16kW | 30kW | 60kW | 80kW | 100kW |
Heating consumption power | 5.6kW | 11.1kW | 20.1kW | 40.2kW | 55.2kW | 68.9kW |
Maximum operating current | 40A | 35A | 70A | 120A | 160A | 200A |
discharge | 1.7m³/h | 3.1m³/h | 6m³/h | 12m³/h | 17.2m³/h | 24.1m³/h |
noise | ≤56dB(A) | ≤58dB(A) | ≤60dB(A) | ≤65dB(A) | ≤68dB(A) | ≤72dB(A) |
Water side pressure loss | ≤72kPa | ≤75kPa | ≤75kPa | ≤85kPa | ≤85kPa | ≤88kPa |
Unit size (length ×widthx height mm) | 1030×410×1390 | 860×780×1780 | 1550×780×1780 | 2260×1030×2170 | 2260×1230×2170 | 2260×1230×2170 |
CONNECT SIZE | DN32(hexagon | DN32(hexagon | DN40(hexagon | DN50(flange) | DN65(flange) | DN80(flange) |
Unit weight(kg) | 160 | 215 | 415 | 755 | 1110 | 1250 |
