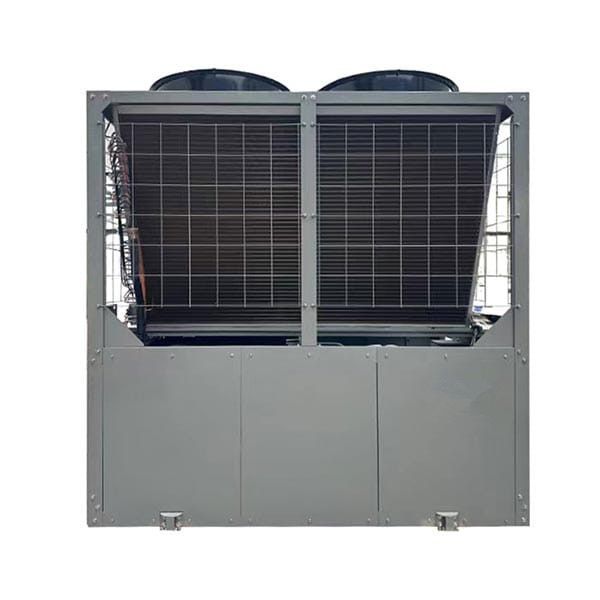

DC Inverter Air to Water Heat Pump up to 95C

The Leomon high-temperature heat pump delivers water temperatures of up to 95°C. It offers an output temperature range of 55°C to 95°C

Brand:
Leomon

Quantity:
Availability:





Inquire Add to Basket

>> Product Description

The Leomon high-temperature heat pump delivers water temperatures of up to 95°C. It offers an output temperature range of 55°C to 95°C and operates in ambient temperatures from -30°C to 10°C.

This high-temperature heat pump is ideal for applications where standard heat pumps fall short—such as direct boiler replacement or the provision of high-temperature domestic hot water.

Leomon can operate in temperatures as low as -30°C (-22°F) while remaining significantly more energy-efficient than conventional electric boilers.

Features

Features

1. High energy efficiency

2. Reliable operation

3. Intelligent control system

4. Easy installation and maintenance

5. Specialized design

Advantages

1. Eco-friendly Refrigerants (R1234ze/R134A): Utilizes refrigerants with a low Global Warming Potential (GWP) for energy-efficient heating.

2. A+ Energy Efficiency Rating: High efficiency ensures lower electricity consumption.

3. Smart Control Options: Optional intelligent control for "instant hot water" (zero-wait hot water) functionality for added convenience.

4. Premium Components: Equipped with compressors from Panasonic/Gree and valves from Sanhua.

5. Global Certifications: Compliant with RoHS, CB, ISO9001, and CE standards.

Specifications

Type	FKH-10I/CGW	FKH-18II/CGW	FKH-35II/CGW	FKH-70II/CGW	FKH-100II/CGW	FKH-130II/CGW
Type	Side air outlet	Top out wind	Top out wind	Top out wind	Top out wind	Top out wind
Power specifications	220V～50Hz	380V 3N～50Hz	380V 3N～50Hz	380V 3N～50Hz	380V 3N~50Hz	380V 3N～50Hz
Heating capacity under A1 operating condition(20)	10kW	18kW	35kW	70kW	100kW	130kW
Heating consumption power under A1 working condition	4.8kW	8.2kW	16.8kW	33.6kW	47.6kW	61.5kW
Heating capacity under A2 working condition(7)	9.5kW	17kW	34kW	68kW	95kW	125kW
Heating consumption power under A2 working condition	5kW	8.9kW	17.9kW	35.8kW	50kW	65.8kW
Heating capacity under A3 working condition(-12)	9.5kW	17kW	32kW	64kW	90kW	110kW
Heating consumption power under A3 working condition	6.2kW	10.6kW	20.6kW	41.2kW	56.5kW	68.5kW
Heating capacity under A4working condition(-20)	8kW	16kW	30kW	60kW	80kW	100kW
Heating consumption power under A4 working condition	5.6kW	11.1kW	20.1kW	40.2kW	55.2kW	68.9kW
Maximum operating current	40A	35A	70A	120A	160A	200A
discharge	1.7m³/h	3.1m³/h	6m³/h	12m³/h	17.2m³/h	24.1m³/h
noise	≤56dB(A)	≤58dB(A)	≤60dB(A)	≤65dB(A)	≤68dB(A)	≤72dB(A)
Water side pressure loss	≤72kPa	≤75kPa	≤75kPa	≤85kPa	≤85kPa	≤88kPa
Unit size (length ×widthx height mm)	1030×410×1390	860×780×1780	1550×780×1780	2260×1030×2170	2260×1230×2170	2260×1230×2170
CONNECT SIZE	DN32(hexagon nipples))	DN32(hexagon nipples))	DN40(hexagon nipples)	DN50(flange)	DN65(flange)	DN80(flange)
Unit weight(kg)	160	215	415	755	1110	1250
