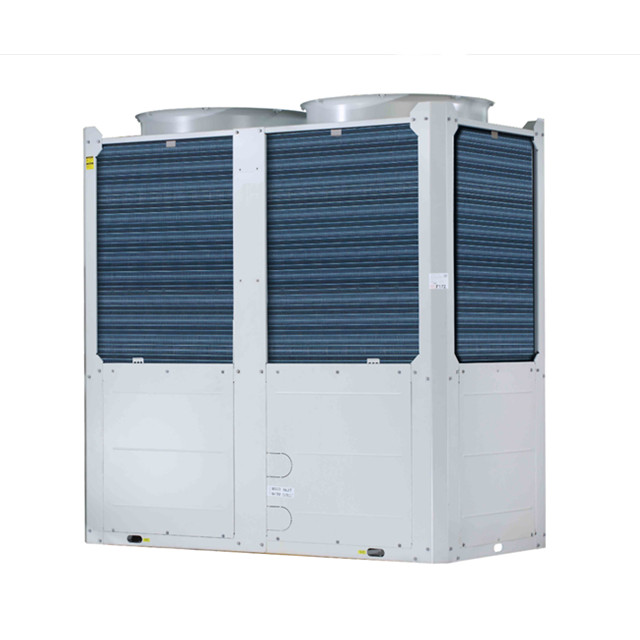

Durable 145°C Simultaneous Cooling and Heating Heat Pump for Slaughterhouse

Leomon high-temperature heat pumps utilize an intelligent temperature control system, capable of producing hot water and steam at temperatures up to 145°C.

Brand:
Leomon

Quantity:
Availability:





Inquire Add to Basket

Durable 145°C Simultaneous Cooling and Heating Heat Pump

>> Product Description

Leomon high-temperature heat pumps utilize an intelligent temperature control system, capable of producing hot water and steam at temperatures up to 145°C.

Leomon units can operate in ambient temperatures as low as -30°C (-22°F) while remaining significantly more energy-efficient than traditional electric boilers.

These 120°C+ high-temperature heat pumps are ideal for applications such as thermal oil storage, dairy processing, beverage and beer production, commercial kitchen sanitization, and the textile dyeing and printing industry. They represent the most energy-efficient and cost-effective solution for high-temperature water heating.

Features

Features

1. WiFi remote control

2. IoT management

3. Power consumption monitoring module

4. MODBUS communication

5. Low-noise operation

6. Stable performance down to -25°C

7. Maximum outlet temperature of up to 145°C

Advantages

1. Optimized for High-Temperature Refrigerants

The refrigerant circulation path and thermophysical properties are specifically optimized for high-temperature conditions, enhancing the thermodynamic cycle efficiency of the system within high-temperature ranges.

2. Reinforced High-Temperature, High-Pressure Heat Exchanger

The shell-and-tube heat exchanger features a reinforced design and high pressure resistance, ensuring superior stability, safety, and reliability during high-temperature and high-pressure operation.

3. Redundant System Safety Protection

To guarantee reliable and safe operation—even under extreme working conditions—the system is equipped with multi-level protection mechanisms for pressure, temperature, and flow.

4. Industrial-Grade Continuous Operation

Designed specifically for industrial steam-replacement applications, this unit is built to withstand prolonged, high-temperature, high-load operation, meeting the continuous production requirements of manufacturing processes.

Specifications

Stacked air source high-temperature steam heat pump(150℃ steam)
Model	FKH-18II/TGW	FKH-45II/TGW	FKH-65II/TGW	FKH-90II/TGW	FKH-130II/TGW	FKH-250I/TGW
Generate steam quantity	30kg	80kg	100kg	160kg	200kg	360kg
Power Specifications	380V 3N~50Hz	380V 3N~50Hz	380V 3N~50Hz	380V 3N~50Hz	380V 3N~50Hz	380V 3N~50Hz
A1 heating capacity(20℃	20KW	45KW	65KW	90KW	130KW	250KW
A1 Heating consumption power	12KW	28KW	40.5KW	56KW	81KW	165KW
Maximum operating current	30A	70A	120A	150A	200A	400A
Noise	≤72dB(A)	≤72dB(A)	≤75dB(A)	≤80dB(A)	≤80dB(A)	≤86dB(A)
Unit size(length x width x height mm)	1600×780×2000	2100×780×2000	3260×1030×2400	3260×1230×2400	3260×1230×2400	4000×2260×2600
Steam connection size	DN32	DN32	DN40	DN40	DN40	DN50
Size of water replenishment connection pipe	DN20	DN20	DN20	DN20	DN20	DN20
Unit weight (kg)	240	580	1180	1430	2100	5000
Price(usd)	6176	12500	16470	22058	30882	63235
The above perfomance parameters are formulated according to the requirements:
Operating conditions:ambient temperature of 20℃,steam temperature of 150℃; The minimum operating ambient temperature for this device is 15℃.
