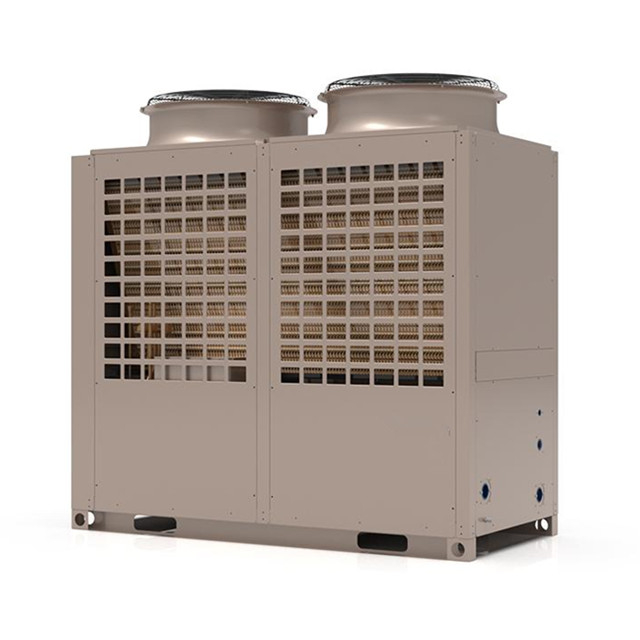

This industrial hot-water heat pump is specifically designed for high-temperature industrial applications requiring water temperatures of up to 95°C.
With a rated outlet temperature of 95°C and utilizing the R1234ze refrigerant, this unit is engineered to operate in ambient temperatures ranging from -5°C to 43°C, meeting the rigorous demands of industrial and commercial hot-water applications.
Features
1. Ultra-low GWP (Global Warming Potential) R1234ze refrigerant
2. Screw-type compressor designed for continuous, heavy-duty, high-temperature operation
3. Cooling system with an internal circuit
4. Robust and durable shell-and-tube heat exchanger
Advantages
1. Excellent Performance Across Various Operating Conditions
The heat pump system delivers efficient space heating, cooling, and domestic hot water, even in extremely cold climates—making it well-suited for most regions in Europe.
2. High-Quality Compressor
Equipped with a Panasonic compressor, the system ensures reliable operation, helping to maintain a comfortable environment.
3. EVI (Enhanced Vapor Injection) Technology
Thanks to EVI technology, the system maintains superior heating performance in low-temperature environments. It can provide 80°C hot water even when the outdoor ambient temperature drops to -15°C, and it remains operational in extreme cold—down to -30°C.
4. Multi-Layered Anti-Freeze Protection
The system employs multiple anti-freeze measures—including water pump circulation, system circulation, and chassis heating—to automatically monitor the temperatures of the main unit and piping. If the ambient temperature falls below 2°C and the water temperature drops below 7°C, the heat pump will automatically initiate heating to 15°C, effectively preventing the system from freezing.
5. Intelligent Defrosting
Using multiple sensors to monitor operating temperatures in real-time, the system performs intelligent defrosting based on actual demand rather than a fixed schedule. This approach is more efficient and energy-saving compared to traditional timed defrosting methods. Specifications
Type | FKH-10I/CGW | FKH-18II/CGW | FKH-35II/CGW | FKH-70II/CGW | FKH-100II/CGW | FKH-130II/CGW |
Side air outlet | Top out wind | Top out wind | Top out wind | Top out wind | Top out wind | |
Power specifications | 220V～50Hz | 380V 3N～50Hz | 380V 3N～50Hz | 380V 3N～50Hz | 380V 3N~50Hz | 380V 3N～50Hz |
Heating capacity under A1 | 10kW | 18kW | 35kW | 70kW | 100kW | 130kW |
Heating consumption power under A1 | 4.8kW | 8.2kW | 16.8kW | 33.6kW | 47.6kW | 61.5kW |
Heating capacity under A2 working | 9.5kW | 17kW | 34kW | 68kW | 95kW | 125kW |
Heating consumption power under A2 | 5kW | 8.9kW | 17.9kW | 35.8kW | 50kW | 65.8kW |
Heating capacity under A3 working | 9.5kW | 17kW | 32kW | 64kW | 90kW | 110kW |
Heating consumption power | 6.2kW | 10.6kW | 20.6kW | 41.2kW | 56.5kW | 68.5kW |
Heating capacity under A4working | 8kW | 16kW | 30kW | 60kW | 80kW | 100kW |
Heating consumption power | 5.6kW | 11.1kW | 20.1kW | 40.2kW | 55.2kW | 68.9kW |
Maximum operating current | 40A | 35A | 70A | 120A | 160A | 200A |
discharge | 1.7m³/h | 3.1m³/h | 6m³/h | 12m³/h | 17.2m³/h | 24.1m³/h |
noise | ≤56dB(A) | ≤58dB(A) | ≤60dB(A) | ≤65dB(A) | ≤68dB(A) | ≤72dB(A) |
Water side pressure loss | ≤72kPa | ≤75kPa | ≤75kPa | ≤85kPa | ≤85kPa | ≤88kPa |
Unit size (length ×widthx height mm) | 1030×410×1390 | 860×780×1780 | 1550×780×1780 | 2260×1030×2170 | 2260×1230×2170 | 2260×1230×2170 |
CONNECT SIZE | DN32(hexagon | DN32(hexagon | DN40(hexagon | DN50(flange) | DN65(flange) | DN80(flange) |
Unit weight(kg) | 160 | 215 | 415 | 755 | 1110 | 1250 |
If you require a high-temperature heat pump solution, please contact us. Our heat pump experts will provide you with the optimal solution.
