Leomon
| Availability: | |
|---|---|
| Quantity: | |

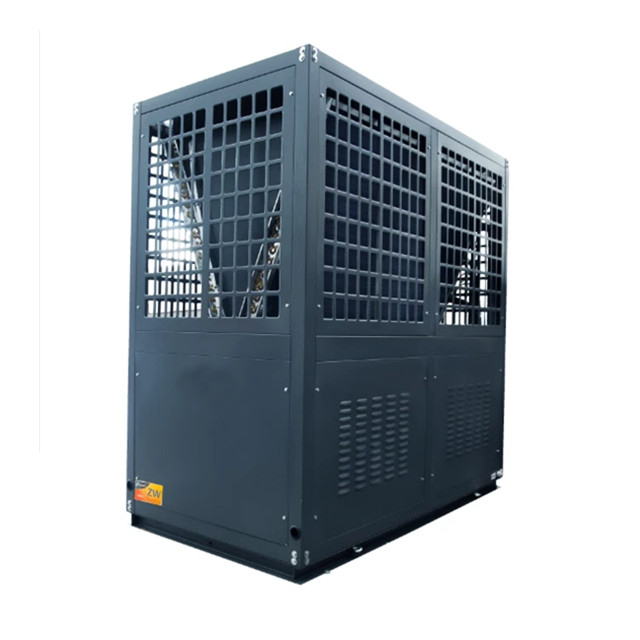

The Leomon high-temperature heat pump utilizes an intelligent temperature control system, capable of delivering water temperatures of up to 85°C.
Leomon high-temperature heat pumps offer exceptional part-load efficiency, which helps reduce maintenance costs over the unit's service life. Furthermore, they operate with remarkably low noise levels under part-load conditions. In addition to high-efficiency, quiet operation, these heat pumps—equipped with smart technology—can function reliably across an ambient temperature range of -25°C to +50°C.
Features
1. Full-inverter technology for high seasonal performance
2. R410A refrigerant (GWP = 0.02)
3. Low environmental impact
4. Maximum leaving water temperature (LWT) of 85°C
5. Supports decarbonization initiatives and the phase-out of fossil-fuel boilers
6. Compact structure for easy installation
7. Modular design, supporting up to 4 units (500kW total capacity)
Advantages
1. Outstanding Performance
* Features EC variable-speed fans and optional variable-speed pumps
* 15% higher energy efficiency compared to the previous generation, while maintaining a similar footprint
2. Quick and Easy Installation
* Compact design
* Integrated hydraulic module (optional)
3. Very Low Operating Costs
* High seasonal energy efficiency
* Scroll compressors equipped with high-efficiency variable-frequency motors
4. Low Noise Levels as Standard
* Condensers equipped with variable-speed fans for quieter operation
* Specialized control functions to reduce noise levels during the night or when the premises are unoccupied
5. Designed to Facilitate Boiler Replacement
Engineered with a compact footprint, these units can be installed in spaces where a heat pump replacement for an existing boiler might not have been originally planned, requiring minimal space. Hot water temperatures can reach up to 85°C (maximum) and as low as 70°C (minimum), even with outdoor ambient temperatures as low as -10°C.
6. Remote Management (Standard)
* Easily accessible via the internet
* Includes a variety of remote control, monitoring, and diagnostic functions
Type | FKH-10I/CGW | FKH-18II/CGW | FKH-35II/CGW | FKH-70II/CGW | FKH-100II/CGW | FKH-130II/CGW |
Side air outlet | Top out wind | Top out wind | Top out wind | Top out wind | Top out wind | |
Power specifications | 220V～50Hz | 380V 3N～50Hz | 380V 3N～50Hz | 380V 3N～50Hz | 380V 3N~50Hz | 380V 3N～50Hz |
Heating capacity under A1 | 10kW | 18kW | 35kW | 70kW | 100kW | 130kW |
Heating consumption power under A1 | 4.8kW | 8.2kW | 16.8kW | 33.6kW | 47.6kW | 61.5kW |
Heating capacity under A2 working | 9.5kW | 17kW | 34kW | 68kW | 95kW | 125kW |
Heating consumption power under A2 | 5kW | 8.9kW | 17.9kW | 35.8kW | 50kW | 65.8kW |
Heating capacity under A3 working | 9.5kW | 17kW | 32kW | 64kW | 90kW | 110kW |
Heating consumption power | 6.2kW | 10.6kW | 20.6kW | 41.2kW | 56.5kW | 68.5kW |
Heating capacity under A4working | 8kW | 16kW | 30kW | 60kW | 80kW | 100kW |
Heating consumption power | 5.6kW | 11.1kW | 20.1kW | 40.2kW | 55.2kW | 68.9kW |
Maximum operating current | 40A | 35A | 70A | 120A | 160A | 200A |
discharge | 1.7m³/h | 3.1m³/h | 6m³/h | 12m³/h | 17.2m³/h | 24.1m³/h |
noise | ≤56dB(A) | ≤58dB(A) | ≤60dB(A) | ≤65dB(A) | ≤68dB(A) | ≤72dB(A) |
Water side pressure loss | ≤72kPa | ≤75kPa | ≤75kPa | ≤85kPa | ≤85kPa | ≤88kPa |
Unit size (length ×widthx height mm) | 1030×410×1390 | 860×780×1780 | 1550×780×1780 | 2260×1030×2170 | 2260×1230×2170 | 2260×1230×2170 |
CONNECT SIZE | DN32(hexagon | DN32(hexagon | DN40(hexagon | DN50(flange) | DN65(flange) | DN80(flange) |
Unit weight(kg) | 160 | 215 | 415 | 755 | 1110 | 1250 |
If you are looking for a high-temperature heat pump solution, please contact us. Our heat pump experts will provide you with the optimal solution.
