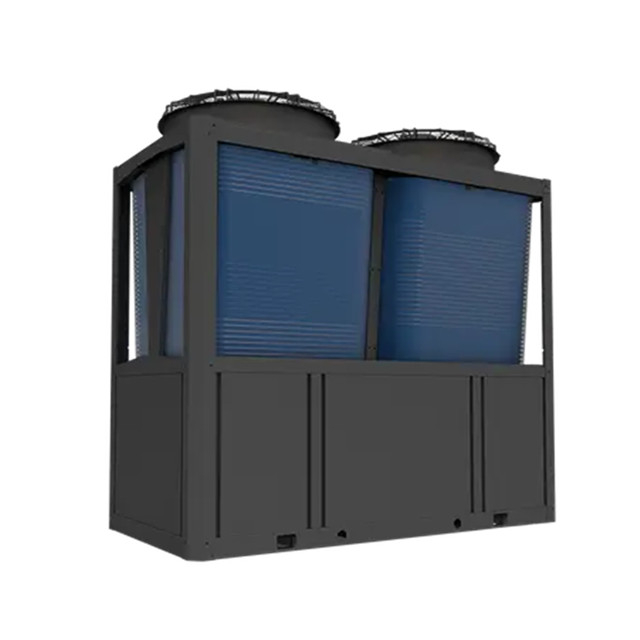

High Quality 50kW 120C Heat Pump with High Temperature Heater

Leomon high-temperature heat pumps deliver water temperatures of up to 120°C.

Brand:
Leomon

Quantity:
Availability:





Inquire Add to Basket

>> Product Description

Leomon high-temperature heat pumps deliver water temperatures of up to 120°C. Designed for industrial and commercial applications that require a consistent supply of high-temperature hot water, these units help reduce reliance on traditional heating systems powered by electricity, gas, or fossil fuels.

Leomon heat pumps can operate in ambient temperatures as low as -30°C (-22°F) while remaining more energy-efficient than conventional electric boilers.

Features

Applications:

* Textile dyeing

* Food processing

* Beverage production

* Electroplating

* Chemical processing

* Pharmaceutical manufacturing

* Industrial cleaning

* Space heating

* Commercial hot water systems

Features

1. High energy efficiency

2. Reliable operation

3. Intelligent control system

4. Easy installation and maintenance

5. Specialized design

Advantages

1. Eco-friendly refrigerants (R1234ze, R134A): Utilizes refrigerants with a low Global Warming Potential (GWP) for energy-efficient heating.

2. A+ Energy Efficiency Rating: High efficiency ensures lower power consumption.

3. Intelligent Control Options: Optional "zero-cold-water" (instant hot water) control feature for enhanced convenience.

4. Premium Components: Equipped with compressors from Panasonic/Gree and valves from Sanhua.

5. Global Certifications: Compliant with RoHS, CB, ISO9001, and CE standards.

Specifications

Type	FKH-20II/TGW	FKH-50II/TGW	FKH-100II/TGW
Type	Top out wind	Top out wind	Top out wind
Power specifications	380V 3N～50Hz	380V 3N~50Hz	380V 3N～50Hz
Heating capacity under A1 operating condition(20)	20kW	50kW	100kW
Heating consumption power under A1 working condition	12kW	29kW	58kW
Heating capacity under A2 working condition(7)	19kW	49kW	98kW
Heating consumption power under A2 working condition	12kW	31kW	62kW
Heating capacity under A3working condition( -12)	15kW	42kW	85kW
Heating consumption power under A3 working condition	11.5kW	32kW	63kW
Heating capacity under A4working condition(-20)	14kW	37kW	75kW
Heating consumption power under A4 working condition	11.2kW	30kW	60kW
Maximum operating current	36A	70A	140A
discharge	3.4m³/h	8.6m³/h≤	17.2m³/h
noise	≤58dB(A)	60dB(A)	≤72dB(A)
Water side pressure loss	≤75kPa	≤75kPa	≤88kPa
Unit size(length xwidth x height mm)	860×780×1780	1550×780×1780	2260×1230×2170
CONNECT SIZE	DN32(hexagon nipples)	DN40(hexagon nipples)	DN80(flange)
Unit weight(kg)	240	450	1350
