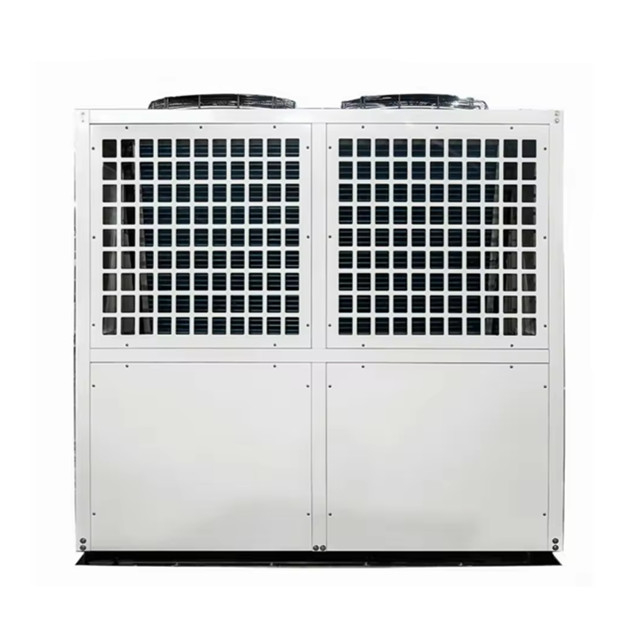

High Temperature Heat Pump 12kW to 80kW 85C Hot Water Heating Pump

Leomon heat pumps utilize the eco-friendly refrigerant R134A, which has an extremely low Global Warming Potential (GWP).

Brand:
Leomon

Quantity:
Availability:





Inquire Add to Basket

>> Product Description

A More Earth-Friendly Way to Heat and Cool

Leomon heat pumps utilize the eco-friendly refrigerant R134A, which has an extremely low Global Warming Potential (GWP). Beyond its environmental benefits, the system offers faster heating response times and higher water temperature outputs—reaching up to 85°C—compared to many alternatives.

Designed with a compact footprint, the unit provides heating, cooling, and domestic hot water, and is compatible with underfloor heating, radiators, and fan coil units. It features a 4G smart controller with a built-in SIM card, allowing you to control, schedule, and monitor the system from anywhere—smart scheduling helps save energy (and money!).

Features

Features

1. With its sleek black exterior and adjustable touchscreen control panel, this heating solution combines aesthetic appeal with practical functionality.

2. The system operates with exceptional quietness and efficiency, while meeting the high-temperature heating requirements of certain buildings.

3. Well-suited for lower-temperature operating conditions, offering a more cost-effective solution.

Advantages

1. Excellent Performance Across Various Conditions

The heat pump system efficiently provides home heating, cooling, and domestic hot water, even in extremely cold climates. It is suitable for use throughout most of Europe.

2. High-Quality Compressor

Equipped with a Panasonic compressor, the system ensures reliable operation, creating an ideal, comfortable home environment.

3. EVI (Enhanced Vapor Injection) Technology

Thanks to EVI technology, the system maintains outstanding heating performance in low-temperature environments. It can deliver 85°C hot water even when the outdoor temperature drops to -15°C, and it remains operational in extreme cold—down to -30°C.

4. Comprehensive Anti-Freeze Protection

The system employs multiple anti-freeze measures—including water pump circulation, system-wide circulation, and base-pan heating—to automatically monitor the temperatures of the main unit and the piping. When the ambient temperature falls below 2°C and the water temperature drops below 7°C, the heat pump will automatically heat the water to 15°C, effectively preventing the system from freezing.

5. Intelligent Defrosting

Using multiple sensors to monitor operating temperatures in real time, the system performs intelligent defrosting based on actual requirements, avoiding unnecessary operation. This method is more efficient and energy-saving compared to scheduled (timed) defrosting.

Specifications

Type	FKH-10I/CGW	FKH-18II/CGW	FKH-35II/CGW	FKH-70II/CGW	FKH-100II/CGW	FKH-130II/CGW
Type	Side air outlet	Top out wind	Top out wind	Top out wind	Top out wind	Top out wind
Power specifications	220V～50Hz	380V 3N～50Hz	380V 3N～50Hz	380V 3N～50Hz	380V 3N~50Hz	380V 3N～50Hz
Heating capacity under A1 operating condition(20)	10kW	18kW	35kW	70kW	100kW	130kW
Heating consumption power under A1 working condition	4.8kW	8.2kW	16.8kW	33.6kW	47.6kW	61.5kW
Heating capacity under A2 working condition(7)	9.5kW	17kW	34kW	68kW	95kW	125kW
Heating consumption power under A2 working condition	5kW	8.9kW	17.9kW	35.8kW	50kW	65.8kW
Heating capacity under A3 working condition(-12)	9.5kW	17kW	32kW	64kW	90kW	110kW
Heating consumption power under A3 working condition	6.2kW	10.6kW	20.6kW	41.2kW	56.5kW	68.5kW
Heating capacity under A4working condition(-20)	8kW	16kW	30kW	60kW	80kW	100kW
Heating consumption power under A4 working condition	5.6kW	11.1kW	20.1kW	40.2kW	55.2kW	68.9kW
Maximum operating current	40A	35A	70A	120A	160A	200A
discharge	1.7m³/h	3.1m³/h	6m³/h	12m³/h	17.2m³/h	24.1m³/h
noise	≤56dB(A)	≤58dB(A)	≤60dB(A)	≤65dB(A)	≤68dB(A)	≤72dB(A)
Water side pressure loss	≤72kPa	≤75kPa	≤75kPa	≤85kPa	≤85kPa	≤88kPa
Unit size (length ×widthx height mm)	1030×410×1390	860×780×1780	1550×780×1780	2260×1030×2170	2260×1230×2170	2260×1230×2170
CONNECT SIZE	DN32(hexagon nipples))	DN32(hexagon nipples))	DN40(hexagon nipples)	DN50(flange)	DN65(flange)	DN80(flange)
Unit weight(kg)	160	215	415	755	1110	1250
