Leomon
| Availability: | |
|---|---|
| Quantity: | |

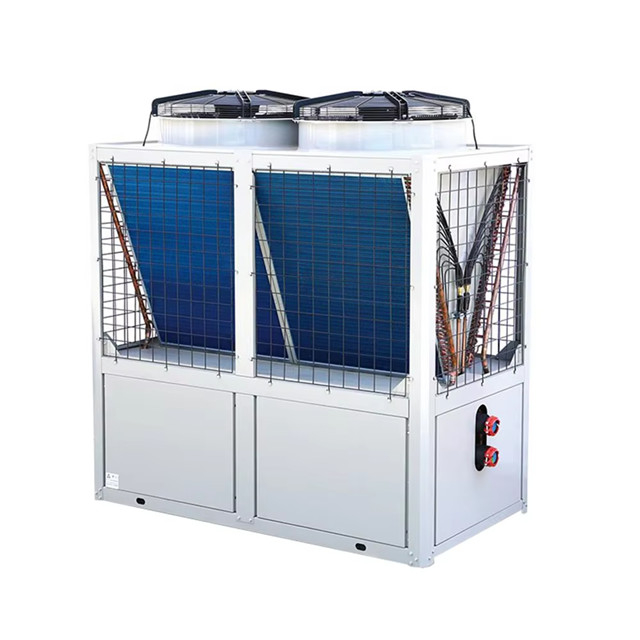

Leomon high-temperature heat pumps feature an intelligent temperature control system, capable of delivering water temperatures of up to 80°C.
Leomon high-temperature heat pumps offer exceptional part-load efficiency, which helps reduce maintenance costs over the unit's service life. Furthermore, they operate with remarkably low noise levels during part-load conditions. In addition to high-efficiency, quiet operation, these intelligently controlled heat pumps can function reliably across an ambient temperature range of -25°C to +50°C.
Features
1. Full-inverter technology for high seasonal performance
2. Uses R134a refrigerant (with a Global Warming Potential, or GWP, of 0.02)
3. Low environmental impact
4. Maximum leaving water temperature (LWT) of 80°C
5. Supports decarbonization initiatives and transitions away from fossil-fuel boilers
6. Compact structure for easy installation
7. Modular design, supporting configurations of up to 4 units (500kW total capacity)
Advantages
1. Outstanding Performance
* Equipped with EC variable-speed fans and optional variable-speed pumps
* 15% higher energy efficiency compared to the previous generation, while maintaining a similar footprint
2. Quick and Easy Installation
* Compact design
* Integrated hydraulic module (optional)
3. Very Low Operating Costs
* High seasonal energy efficiency
* Scroll compressors equipped with high-efficiency variable-frequency motors
4. Low Noise Levels as Standard
* Condensers feature variable-speed fans for quieter operation
* Specialized control functions to reduce noise levels during nighttime or periods when the space is unoccupied
5. Designed to Facilitate Boiler Replacement
Engineered with a compact footprint, these units can be installed in spaces where a heat pump replacement for an old boiler might not have been originally planned, requiring minimal space. Hot water temperatures can reach up to 80°C (maximum) and as low as 70°C (minimum), with the system capable of operating in outdoor temperatures as low as -10°C.
6. Remote Management (Standard)
* Easily accessible via the internet
* Includes a range of remote control, monitoring, and diagnostic functions
Type | FKH-12I/GW | FKH-20II/GW | FKH-40II/GW | FKH-80II/GW | FKH-110II/GW | FKH-140II/GW |
Side air outlet | Top out wind | Top out wind | Top out wind | Top out wind | Top out wind | |
Power specifications | 220V～50Hz | 380V 3N～50Hz | 380V 3N～50Hz | 380V 3N～50Hz | 380V 3N～50Hz | 380V 3N～50Hz |
Heating capacity under A1 | 12kW | 20kW | 40kW | 80kW | 110kW | 140kW |
Heating consumption power under | 4.8kW | 8.2kW | 16.2kW | 32kW | 44.5kW | 56kW |
Heating capacity under A2 | 11.5kW | 19kW | 38kW | 76kW | 105kW | 135kW |
Heating consumption power under | 5.3kW | 8.7kW | 17.5kW | 34.5kW | 48kW | 61kW |
Heating capacity under A3 |
| 17kW | 35kW | 65kW | 90kW | 110kW |
Heating consumption power |
| 8.5kW | 19kW | 37.5kW | 52kW | 63.5kW |
Heating capacity under A4working |
| 15kW | 30kW | 58kW | 80kW | 100kW |
Heating consumption power |
| 9.3kW | 18.5kW | 36kW | 49.6kW | 61.7kW |
Maximum operating current | 40A | 35A | 70A | 120A | 160A | 200A |
discharge | 2.1m³/h | 3.5m³/h | 6.9m³/h | 13.8m³/h | 18.9m³/h | 24.1m³/h |
noise | ≤56dB(A) | ≤58dB(A) | ≤60dB(A) | ≤65dB(A) | ≤68dB(A) | ≤72dB(A) |
Water side pressure loss | ≤72kPa | ≤75kPa | ≤75kPa | ≤85kPa | ≤85kPa | ≤88kPa |
Unit size(length x width x height mm) | 1030×410×1390 | 860×780×1780 | 1550×780×1780 | 2260×1030×2170 | 2260×1230×2170 | 2260×1230×2170 |
CONNECT SIZE | DN32(hexagon nipples ) | DN32(hexagon | DN40(hexagon | DN50(flange) | DN65(flange) | DN80(flange) |
Unit weight(kg) | 160 | 212 | 412 | 750 | 1100 | 1250 |
If you are looking for a high-temperature heat pump solution, please contact us. Our team of heat pump experts is ready to provide you with the optimal solution for your needs.
