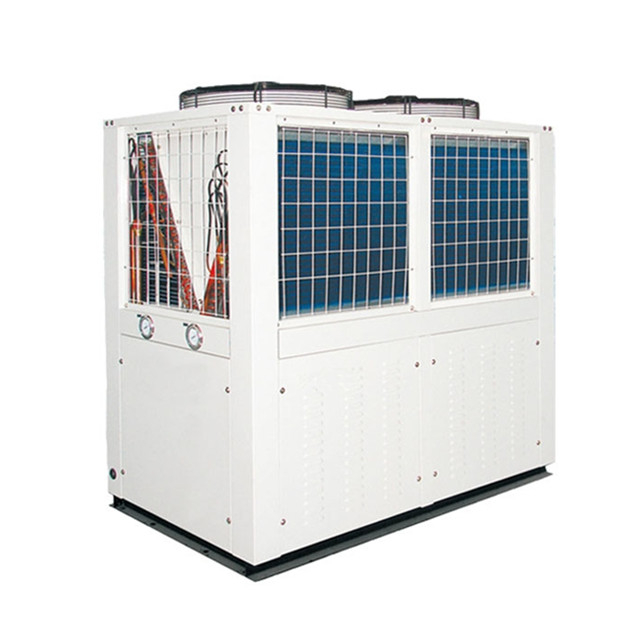

Utilizing two-stage cascade compression technology and multi-stage refrigerant heat exchange, this system reduces the operating compression ratio. This significantly enhances the unit's efficiency and its ability to operate effectively in low-ambient-temperature environments—innovatively achieving an outlet water temperature of 150°C even when the ambient temperature is as low as -35°C.
Applications:
* Industrial Manufacturing: High-temperature hot water for production operations and process heating.
* Food Processing: Hot water for production, cleaning, heating, and related processes.
* Slaughterhouses: Hot water for cleaning, processing, and disinfection.
* Electroplating: Temperature control and heating for electroplating processes.
* Chemical Industry: Heating of process fluids and industrial hot water.
* Commercial Buildings: High-temperature hot water and space heating systems.
Advantages
1. Branded Components
* Danfoss high-temperature variable-frequency compressors
* Danfoss plate heat exchangers
* Danfoss/Siemens electronic expansion valves
* Danfoss pressure sensors
* Danfoss/Jiumao temperature sensors
* Siemens Programmable Logic Controller (PLC)
2. Intelligent, High-Precision Measurement and Control System
* Non-EVI (Enhanced Vapor Injection) design offers easier control, lower costs, and higher energy efficiency.
3. Eco-Friendly
* Zero pollution
4. Strong Adaptability and Compatibility
* Equipped with proprietary control software and a programmable design; supports Modbus RTU communication protocol via an RS485 interface.
5. Separation of Water and Electricity
* Safe and reliable
6. Intelligent Operation and Electrical System Monitoring & Protection
Real-time monitoring of electrical parameters—such as operating current, voltage, power, and energy consumption—allows for continuous tracking of energy usage, facilitating cost accounting and optimization. Simultaneously, real-time electrical safety protection reduces the risk of equipment failure caused by electrical anomalies.
7. Intelligent Defrosting
A multi-stage intelligent defrosting system ensures uninterrupted operation.
Stacked air source high-temperature steam heat pump(150℃ steam) | ||||||
Model | FKH-18II/TGW | FKH-45II/TGW | FKH-65II/TGW | FKH-90II/TGW | FKH-130II/TGW | FKH-250I/TGW |
Generate steam quantity | 30kg | 80kg | 100kg | 160kg | 200kg | 360kg |
Power Specifications | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz |
A1 heating capacity(20℃ | 20KW | 45KW | 65KW | 90KW | 130KW | 250KW |
A1 Heating consumption | 12KW | 28KW | 40.5KW | 56KW | 81KW | 165KW |
Maximum operating current | 30A | 70A | 120A | 150A | 200A | 400A |
Noise | ≤72dB(A) | ≤72dB(A) | ≤75dB(A) | ≤80dB(A) | ≤80dB(A) | ≤86dB(A) |
Unit size(length x width x | 1600×780×2000 | 2100×780×2000 | 3260×1030×2400 | 3260×1230×2400 | 3260×1230×2400 | 4000×2260×2600 |
Steam connection size | DN32 | DN32 | DN40 | DN40 | DN40 | DN50 |
Size of water replenishment | DN20 | DN20 | DN20 | DN20 | DN20 | DN20 |
Unit weight (kg) | 240 | 580 | 1180 | 1430 | 2100 | 5000 |
Price(usd) | 6176 | 12500 | 16470 | 22058 | 30882 | 63235 |
The above perfomance parameters are formulated according to the requirements: | ||||||
Operating conditions:ambient temperature of 20℃,steam temperature of 150℃; | ||||||
