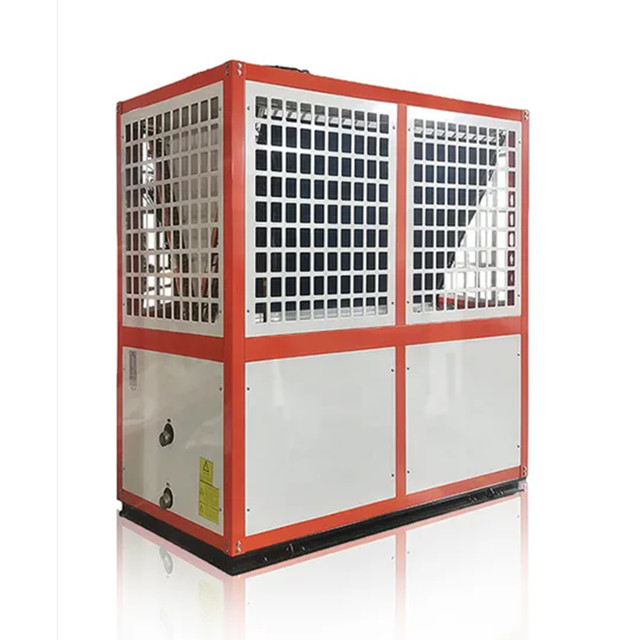

High Temperature Heat Pump for Industrial Use up to 90 °C

Air source high-temperature heat pump water heaters can heat water up to 90°C, meeting requirements for high-temperature hot water.

Brand:
Leomon

Quantity:
Availability:





Inquire Add to Basket

High Temperature Heat Pump for Industrial Use

>> Product Description

Air-source high-temperature heat pump water heaters can heat water up to 90°C, meeting requirements for high-temperature hot water. They are an ideal choice for renovation projects and the replacement of aging boilers. These high-temperature heat pumps integrate seamlessly with your existing piping and radiators.

High-temperature heat pump water heaters are an advanced, energy-efficient solution designed to heat water to temperatures higher than those achieved by standard heat pumps. These systems are particularly well-suited for applications requiring water temperatures that exceed the typical operating range of conventional heat pumps—such as industrial processes, commercial facilities, and specific residential uses.

High-temperature heat pumps are also suitable for thermal oil storage projects, dairy plants, beverage production facilities, breweries, kitchen sanitization in restaurants, and the textile printing and dyeing industry. This represents the most energy-efficient and cost-effective method for heating water.

Features

Features:

1. Produces hot water at temperatures up to 90°C

2. Equipped with a Copeland scroll compressor

3. Uses eco-friendly R134A refrigerant

4. High-efficiency heat exchanger

5. Intelligent defrosting function

Advantages:

1. Excellent performance under various operating conditions

The heat pump system provides efficient space heating, cooling, and domestic hot water, even in extremely cold climates. It is well-suited for use across most regions of Europe.

2. High-quality compressor

Features a Panasonic compressor, ensuring reliable operation and creating an ideal, comfortable indoor environment.

3. EVI (Enhanced Vapor Injection) technology

Thanks to EVI technology, the system maintains superior heating performance in low-temperature environments. It can supply 80°C hot water even when the outdoor temperature drops to -15°C, and it remains operational in extreme cold—down to -30°C.

4. Comprehensive anti-freeze protection

The system employs multiple anti-freeze measures—including water pump circulation, system-wide circulation, and base-pan heating—to automatically monitor the temperatures of the main unit and the piping. When the ambient temperature falls below 2°C and the water temperature drops below 7°C, the heat pump will automatically heat the water to 15°C, effectively preventing the system from freezing.

5. Intelligent Defrosting

Using multiple sensors to monitor operating temperatures in real time, the system performs intelligent defrosting based on actual requirements, avoiding unnecessary operation. This method is more efficient and energy-saving compared to scheduled (timed) defrosting.

Specifications

Type	FKH-10I/CGW	FKH-18II/CGW	FKH-35II/CGW	FKH-70II/CGW	FKH-100II/CGW	FKH-130II/CGW
Type	Side air outlet	Top out wind	Top out wind	Top out wind	Top out wind	Top out wind
Power specifications	220V～50Hz	380V 3N～50Hz	380V 3N～50Hz	380V 3N～50Hz	380V 3N~50Hz	380V 3N～50Hz
Heating capacity under A1 operating condition(20)	10kW	18kW	35kW	70kW	100kW	130kW
Heating consumption power under A1 working condition	4.8kW	8.2kW	16.8kW	33.6kW	47.6kW	61.5kW
Heating capacity under A2 working condition(7)	9.5kW	17kW	34kW	68kW	95kW	125kW
Heating consumption power under A2 working condition	5kW	8.9kW	17.9kW	35.8kW	50kW	65.8kW
Heating capacity under A3 working condition(-12)	9.5kW	17kW	32kW	64kW	90kW	110kW
Heating consumption power under A3 working condition	6.2kW	10.6kW	20.6kW	41.2kW	56.5kW	68.5kW
Heating capacity under A4working condition(-20)	8kW	16kW	30kW	60kW	80kW	100kW
Heating consumption power under A4 working condition	5.6kW	11.1kW	20.1kW	40.2kW	55.2kW	68.9kW
Maximum operating current	40A	35A	70A	120A	160A	200A
discharge	1.7m³/h	3.1m³/h	6m³/h	12m³/h	17.2m³/h	24.1m³/h
noise	≤56dB(A)	≤58dB(A)	≤60dB(A)	≤65dB(A)	≤68dB(A)	≤72dB(A)
Water side pressure loss	≤72kPa	≤75kPa	≤75kPa	≤85kPa	≤85kPa	≤88kPa
Unit size (length ×widthx height mm)	1030×410×1390	860×780×1780	1550×780×1780	2260×1030×2170	2260×1230×2170	2260×1230×2170
CONNECT SIZE	DN32(hexagon nipples))	DN32(hexagon nipples))	DN40(hexagon nipples)	DN50(flange)	DN65(flange)	DN80(flange)
Unit weight(kg)	160	215	415	755	1110	1250
