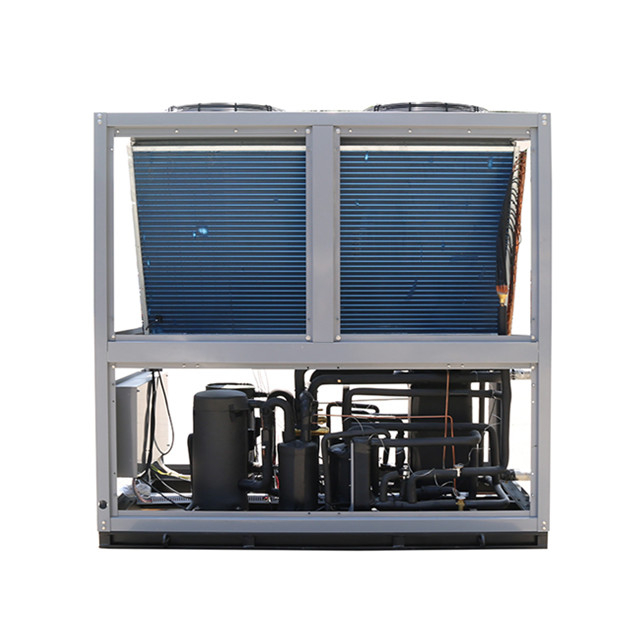

Leomon
| Availability: | |
|---|---|
| Quantity: | |
The Leomon high-temperature heat pump utilizes a specialized compressor and an intelligent temperature control system to deliver water temperatures of up to 85°C (185°F).
This high-temperature heat pump is suitable for applications where most other heat pumps fall short—such as serving as a direct replacement for boilers or providing high-temperature domestic hot water.
Leomon can operate in temperatures as low as -30°C (-22°F) while remaining more energy-efficient than traditional electric boilers.
Features
1. Exceptional Performance Across Various Conditions
This heat pump system provides efficient home heating, cooling, and domestic hot water, even in extremely cold climates. It is well-suited for use throughout most of Europe.
2. High-Quality Compressor
Equipped with a Panasonic compressor, the unit ensures reliable operation, helping you maintain an ideal level of comfort in your home.
3. EVI (Enhanced Vapor Injection) Technology
Thanks to EVI technology, the system maintains outstanding heating performance in low-temperature environments. It can deliver 75°C hot water even when the outdoor temperature drops to -15°C, and it continues to operate reliably in extreme cold—down to -30°C.
4. Multi-Layer Anti-Freeze Protection
Through features such as water pump circulation, system circulation, and chassis heating, the unit automatically monitors the temperatures of the main unit and its piping. If the ambient temperature falls below 2°C and the water temperature drops below 7°C, the heat pump will automatically initiate heating to 15°C, effectively preventing the system from freezing.
5. Intelligent Defrosting
Using multiple sensors to monitor operating temperatures in real-time, the system performs intelligent defrosting only when necessary. This approach avoids inefficient operation and is significantly more effective and energy-saving than fixed-interval defrosting.
Type | FKH-12I/GW | FKH-20II/GW | FKH-40II/GW | FKH-80II/GW | FKH-110II/GW | FKH-140II/GW |
Side air outlet | Top out wind | Top out wind | Top out wind | Top out wind | Top out wind | |
Power specifications | 220V~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz |
Heating capacity under A1 | 12kW | 20kW | 40kW | 80kW | 110kW | 140kW |
Heating consumption power under | 4.8kW | 8.2kW | 16.2kW | 32kW | 44.5kW | 56kW |
Heating capacity under A2 | 11.5kW | 19kW | 38kW | 76kW | 105kW | 135kW |
Heating consumption power under | 5.3kW | 8.7kW | 17.5kW | 34.5kW | 48kW | 61kW |
Heating capacity under A3 |
| 17kW | 35kW | 65kW | 90kW | 110kW |
Heating consumption power |
| 8.5kW | 19kW | 37.5kW | 52kW | 63.5kW |
Heating capacity under A4working |
| 15kW | 30kW | 58kW | 80kW | 100kW |
Heating consumption power |
| 9.3kW | 18.5kW | 36kW | 49.6kW | 61.7kW |
Maximum operating current | 40A | 35A | 70A | 120A | 160A | 200A |
discharge | 2.1m³/h | 3.5m³/h | 6.9m³/h | 13.8m³/h | 18.9m³/h | 24.1m³/h |
noise | ≤56dB(A) | ≤58dB(A) | ≤60dB(A) | ≤65dB(A) | ≤68dB(A) | ≤72dB(A) |
Water side pressure loss | ≤72kPa | ≤75kPa | ≤75kPa | ≤85kPa | ≤85kPa | ≤88kPa |
Unit size(length x width x height mm) | 1030×410×1390 | 860×780×1780 | 1550×780×1780 | 2260×1030×2170 | 2260×1230×2170 | 2260×1230×2170 |
CONNECT SIZE | DN32(hexagon nipples ) | DN32(hexagon | DN40(hexagon | DN50(flange) | DN65(flange) | DN80(flange) |
Unit weight(kg) | 160 | 212 | 412 | 750 | 1100 | 1250 |
Have questions about our energy-efficient heating solutions? We’re here to help! Whether you need product details, installation support, or assistance with an order, our team is ready to provide the support you need.
