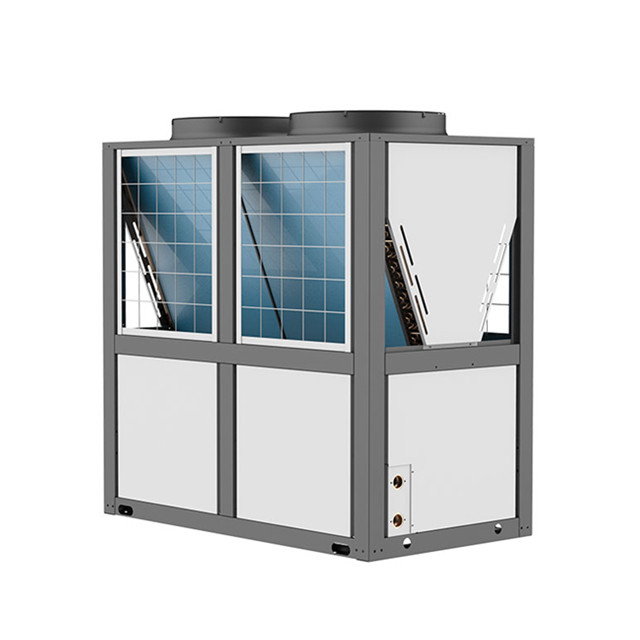

Industrial Air Source 150°C Steam Heat Pump

Converts waste heat air (at temperatures above 55°C) into steam at 110–150°C, recovering valuable thermal energy from industrial processes.

Brand:
Leomon

Quantity:
Availability:





Inquire Add to Basket

>> Product Description

Converts waste heat air (at temperatures above 55°C) into steam at 110–150°C, recovering valuable thermal energy from industrial processes.

Our high-temperature heat pump utilizes an efficient single-stage compression system to upgrade recovered heat, providing a stable supply of high-temperature steam. It is specifically designed for industrial facilities with significant volumes of waste heat air and a continuous demand for steam.

Features

Applications:

* Agriculture: Maintaining constant temperatures in greenhouses for fungal crop cultivation; steaming and drying processes for agricultural products, food items, and medicinal herbs.

* Biopharmaceuticals: High-temperature cleaning, sterilization, and drying.

* Rubber Industry: Vulcanization and drying processes for rubber products.

Features

1. Maximum capacity per unit: 220 kW

2. Modular design for flexible configuration

3. Built-in primary circulation pump (optional)

4. Compact, space-saving structure

5. Indoor installation allows for free auxiliary cooling.

6. 7-inch touchscreen controller for easy operation

7. RS485 communication and Modbus gateway

Advantages

1. Eco-friendly Refrigerants (R1234ze, R134A): Uses low-GWP (Global Warming Potential) refrigerants like R134A for energy-efficient heating.

2. A+ Energy Efficiency Rating: High efficiency ensures lower electricity consumption.

3. Intelligent Control Options: Optional "zero-cold-water" (instant hot water) intelligent control for enhanced convenience.

4. Premium Components: Equipped with Panasonic/Gree compressors and Sanhua valves.

5. Global Certifications: Compliant with RoHS, CB, ISO9001, and CE standards.

Specifications

Stacked air source high-temperature steam heat pump(150℃ steam)
Model	FKH-18II/TGW	FKH-45II/TGW	FKH-65II/TGW	FKH-90II/TGW	FKH-130II/TGW	FKH-250I/TGW
Generate steam quantity	30kg	80kg	100kg	160kg	200kg	360kg
Power Specifications	380V 3N~50Hz	380V 3N~50Hz	380V 3N~50Hz	380V 3N~50Hz	380V 3N~50Hz	380V 3N~50Hz
A1 heating capacity(20℃	20KW	45KW	65KW	90KW	130KW	250KW
A1 Heating consumption power	12KW	28KW	40.5KW	56KW	81KW	165KW
Maximum operating current	30A	70A	120A	150A	200A	400A
Noise	≤72dB(A)	≤72dB(A)	≤75dB(A)	≤80dB(A)	≤80dB(A)	≤86dB(A)
Unit size(length x width x height mm)	1600×780×2000	2100×780×2000	3260×1030×2400	3260×1230×2400	3260×1230×2400	4000×2260×2600
Steam connection size	DN32	DN32	DN40	DN40	DN40	DN50
Size of water replenishment connection pipe	DN20	DN20	DN20	DN20	DN20	DN20
Unit weight (kg)	240	580	1180	1430	2100	5000
Price(usd)	6176	12500	16470	22058	30882	63235
The above perfomance parameters are formulated according to the requirements:
Operating conditions:ambient temperature of 20℃,steam temperature of 150℃; The minimum operating ambient temperature for this device is 15℃.
