Leomon
| Availability: | |
|---|---|
| Quantity: | |

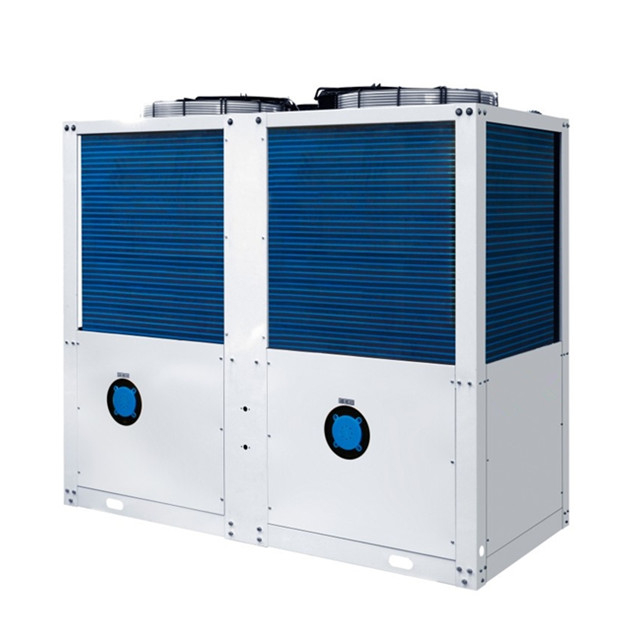

The Leomon air-source high-temperature heat pump is specifically designed for industrial and commercial hot water applications.It utilizes ambient air as a heat source, boosting the available thermal energy to produce hot water at temperatures up to 95°C.
This heat pump system is suitable for radiator heating, industrial hot water supply, hot water for slaughterhouses, temperature control in electroplating, heating of chemical liquids, high-temperature rinsing, and other demanding applications.
Features:
1. Maximum capacity per unit: 350 kW.
2. Efficient operation in low ambient temperatures, with stable heating up to 95°C.
3. Operating ambient temperature range: 10°C to 40°C. Customization options available: minimum ambient operating temperature down to -38°C; maximum outlet water temperature up to 135°C.
4. Modular design, supporting parallel connection of up to 16 units.
5. Inverter technology for precise temperature control and stepless adjustment.
6. Top and side discharge configurations for flexible installation.
7. Touchscreen controller with self-diagnostic functions.
8. RS485 communication and Modbus gateway support.
Applications:
* Industrial Manufacturing: High-temperature hot water for production operations and process heating.
* Food Processing: Hot water for production, cleaning, heating, and related processes.
* Slaughterhouses: Hot water for cleaning, processing, and disinfection.
* Electroplating: Temperature control and heating for electroplating processes.
* Chemical Industry: Heating of process liquids and industrial hot water supply.
* Commercial Buildings: High-temperature hot water and space heating systems. Advantages
1. Branded Components
* Danfoss high-temperature variable-frequency compressors
* Danfoss plate heat exchangers
* Danfoss/Siemens electronic expansion valves
* Danfoss pressure sensors
* Danfoss/Jiumao temperature sensors
* Siemens Programmable Logic Controller (PLC)
2. Intelligent, High-Precision Measurement and Control System
* The non-EVI design offers easier control, lower costs, and higher energy efficiency.
3. Eco-Friendly
* Zero pollution
4. Strong Adaptability and Compatibility
* Equipped with proprietary control software and a programmable design, the unit supports the Modbus RTU communication protocol via an RS485 interface.
5. Water-Electricity Separation
* Safe and reliable
6. Intelligent Operation and Power System Monitoring & Protection
Real-time monitoring of electrical parameters—such as operating current, voltage, power, and energy consumption—allows for continuous tracking of energy usage, facilitating cost accounting and optimization. Simultaneously, real-time electrical safety protection reduces the risk of equipment failure caused by power anomalies.
7. Intelligent Defrosting
A multi-stage intelligent defrosting system ensures uninterrupted operation.
Type | FKH-10I/CGW | FKH-18II/CGW | FKH-35II/CGW | FKH-70II/CGW | FKH-100II/CGW | FKH-130II/CGW |
Side air outlet | Top out wind | Top out wind | Top out wind | Top out wind | Top out wind | |
Power specifications | 220V～50Hz | 380V 3N～50Hz | 380V 3N～50Hz | 380V 3N～50Hz | 380V 3N~50Hz | 380V 3N～50Hz |
Heating capacity under A1 | 10kW | 18kW | 35kW | 70kW | 100kW | 130kW |
Heating consumption power under A1 | 4.8kW | 8.2kW | 16.8kW | 33.6kW | 47.6kW | 61.5kW |
Heating capacity under A2 working | 9.5kW | 17kW | 34kW | 68kW | 95kW | 125kW |
Heating consumption power under A2 | 5kW | 8.9kW | 17.9kW | 35.8kW | 50kW | 65.8kW |
Heating capacity under A3 working | 9.5kW | 17kW | 32kW | 64kW | 90kW | 110kW |
Heating consumption power | 6.2kW | 10.6kW | 20.6kW | 41.2kW | 56.5kW | 68.5kW |
Heating capacity under A4working | 8kW | 16kW | 30kW | 60kW | 80kW | 100kW |
Heating consumption power | 5.6kW | 11.1kW | 20.1kW | 40.2kW | 55.2kW | 68.9kW |
Maximum operating current | 40A | 35A | 70A | 120A | 160A | 200A |
discharge | 1.7m³/h | 3.1m³/h | 6m³/h | 12m³/h | 17.2m³/h | 24.1m³/h |
noise | ≤56dB(A) | ≤58dB(A) | ≤60dB(A) | ≤65dB(A) | ≤68dB(A) | ≤72dB(A) |
Water side pressure loss | ≤72kPa | ≤75kPa | ≤75kPa | ≤85kPa | ≤85kPa | ≤88kPa |
Unit size (length ×widthx height mm) | 1030×410×1390 | 860×780×1780 | 1550×780×1780 | 2260×1030×2170 | 2260×1230×2170 | 2260×1230×2170 |
CONNECT SIZE | DN32(hexagon | DN32(hexagon | DN40(hexagon | DN50(flange) | DN65(flange) | DN80(flange) |
Unit weight(kg) | 160 | 215 | 415 | 755 | 1110 | 1250 |
Please contact us for more information and a free quote.
