Leomon
| Availability: | |
|---|---|
| Quantity: | |

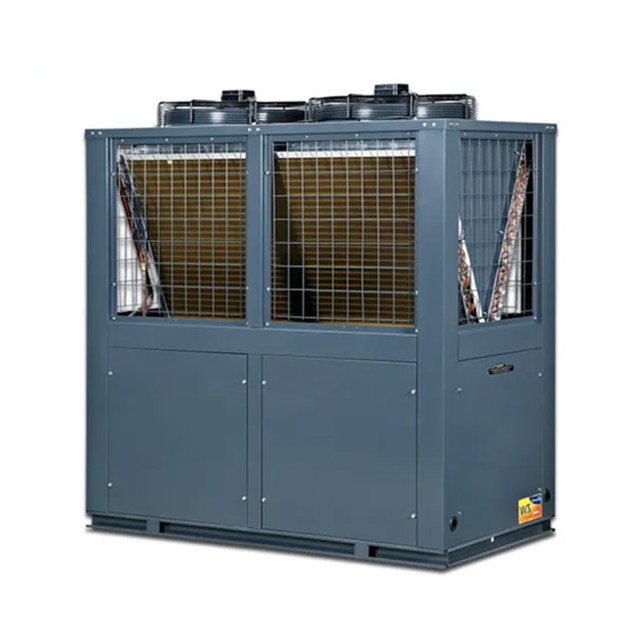

Leomon heat pumps feature a user-friendly design and intuitive controls, ensuring a comfortable experience with ease. The monoblock (all-in-one) design allows for simple, straightforward installation.
Leomon high-temperature heat pumps provide efficient heating, cooling, and hot water—all in a single system. With a maximum water temperature of 75°C, they meet a wide range of end-use requirements.
Features:
1. All-in-One Comfort: Combines heating, cooling, and hot water supply in a single unit for easy installation.
2. Superior Energy Efficiency: Rated A+++ with an SCOP of up to 5.2, featuring an upgraded smart energy-saving mode.
3. Built-in WiFi Control: Integrated WiFi module allows for remote control—no additional installation required.
4. Intelligent Temperature Control: Includes automatic modes and precise indoor temperature regulation for consistent comfort.
5. Quiet Operation: Dedicated "Silent" and "Holiday" modes create a quieter, more energy-efficient home environment.
6. Multi-language Interface: Supports various languages, including German, French, Spanish, and more.
7. Eco-friendly & Safe: Utilizes R134A refrigerant, silver-brazing techniques, and built-in safety valves to ensure reliability.
8. Powerful Performance in All Conditions: EVI technology ensures stable heating even in temperatures as low as -30°C.
Advantages:
1. Excellent Performance Under Various Conditions
The heat pump system delivers efficient home heating, cooling, and domestic hot water, even in extremely cold climates. It is well-suited for use across most regions in Europe.
2. High-Quality Compressor
Equipped with a Panasonic compressor, the system ensures reliable operation, helping you maintain an ideal, comfortable home environment.
3. EVI (Enhanced Vapor Injection) Technology
Thanks to EVI technology, the system maintains outstanding heating performance in low-temperature environments. It can supply 75°C hot water even when the outdoor temperature drops to -15°C, and it continues to operate reliably in extreme cold—down to -30°C.
4. Multi-Layer Anti-Freeze Protection
Utilizing multiple anti-freeze technologies—including water pump circulation, system circulation, and chassis heating—the system automatically monitors the temperatures of the main unit and the piping. When the ambient temperature drops below 2°C and the water temperature falls below 7°C, the heat pump automatically initiates heating to 15°C, effectively preventing the system from freezing.
5. Intelligent Defrosting
By using multiple sensors to monitor operating temperatures in real time, the system performs intelligent defrosting based on actual requirements, avoiding unnecessary operation. Compared to scheduled (timed) defrosting, this method is more efficient and energy-saving.
Type | FKH-12I/GW | FKH-20II/GW | FKH-40II/GW |
Side air outlet | Top out wind | Top out wind | |
Power specifications | 220V～50Hz | 380V 3N～50Hz | 380V 3N～50Hz |
Heating capacity under A1 | 12kW | 20kW | 40kW |
Heating consumption power under | 4.8kW | 8.2kW | 16.2kW |
Heating capacity under A2 | 11.5kW | 19kW | 38kW |
Heating consumption power under | 5.3kW | 8.7kW | 17.5kW |
Heating capacity under A3 |
| 17kW | 35kW |
Heating consumption power |
| 8.5kW | 19kW |
Heating capacity under A4working |
| 15kW | 30kW |
Heating consumption power |
| 9.3kW | 18.5kW |
Maximum operating current | 40A | 35A | 70A |
discharge | 2.1m³/h | 3.5m³/h | 6.9m³/h |
noise | ≤56dB(A) | ≤58dB(A) | ≤60dB(A) |
Water side pressure loss | ≤72kPa | ≤75kPa | ≤75kPa |
Unit size(length x width x height mm) | 1030×410×1390 | 860×780×1780 | 1550×780×1780 |
CONNECT SIZE | DN32(hexagon nipples ) | DN32(hexagon | DN40(hexagon |
Unit weight(kg) | 160 | 212 | 412 |
Please contact us for more information and a free quote.
