Leomon
| Availability: | |
|---|---|
| Quantity: | |

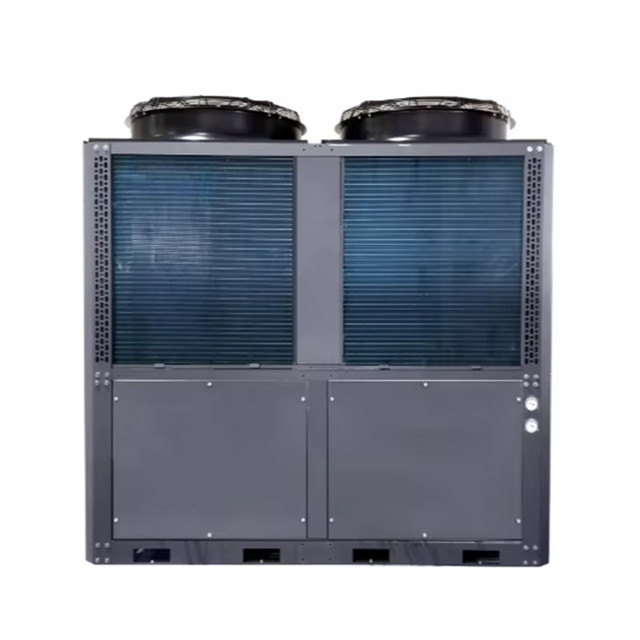

Leomon heat pumps feature a user-friendly design and intuitive controls, ensuring a comfortable experience with ease. The monobloc (all-in-one) design allows for simple installation.
Leomon high-temperature heat pumps provide efficient heating, cooling, and hot water—all in a single system. With a maximum water temperature of 75°C, they meet a wide range of terminal application requirements.
Features:
1. All-in-One Comfort: Combines heating, cooling, and hot water in one unit for easy installation.
2. Superior Energy Efficiency: A+++ energy rating with an SCOP of up to 5.2, plus an upgraded smart energy-saving mode.
3. Built-in Wi-Fi Control: Integrated Wi-Fi module allows for remote control without the need for additional hardware.
4. Smarter Temperature Control: Features automatic modes and precise indoor temperature regulation for consistent comfort.
5. Quiet & Comfortable: Includes dedicated "Quiet" and "Holiday" modes to create a quieter, more energy-efficient home environment.
6. Multi-language Interface: Supports various languages, including German, French, Spanish, and more.
7. Eco-friendly & Safe: Utilizes R134A refrigerant, silver-brazing techniques, and safety valves to ensure long-term reliability.
8. Powerful Performance in All Conditions: EVI technology ensures stable heating even in extreme cold—down to -30°C.
Advantages
1. Excellent Performance Under Various Conditions
This heat pump system delivers efficient home heating, cooling, and domestic hot water, even in extremely cold climates. It is well-suited for use across most of Europe.
2. High-Quality Compressor
Equipped with a Panasonic compressor, the system ensures reliable operation, creating the ideal comfortable home environment.
3. EVI (Enhanced Vapor Injection) Technology
Thanks to EVI technology, the system maintains outstanding heating performance in low-temperature environments. It can produce 75°C hot water even when the outdoor temperature drops to -15°C, and it remains operational in extreme cold—down to -30°C. 4. Multi-Layer Anti-Freeze Protection
The system employs multiple anti-freeze technologies—including water pump circulation, system-wide circulation, and chassis heating—to automatically monitor the temperatures of the main unit and its piping. When the ambient temperature drops below 2°C and the water temperature falls below 7°C, the heat pump automatically initiates heating to reach 15°C, effectively preventing the system from freezing.
5. Intelligent Defrosting
Using multiple sensors to monitor operating temperatures in real time, the system performs intelligent defrosting based on actual requirements, avoiding unnecessary operation. Compared to scheduled (timed) defrosting, this method is more efficient and energy-saving.
Type | FKH-12I/GW | FKH-20II/GW | FKH-40II/GW | FKH-80II/GW | FKH-110II/GW | FKH-140II/GW |
Side air outlet | Top out wind | Top out wind | Top out wind | Top out wind | Top out wind | |
Power specifications | 220V～50Hz | 380V 3N～50Hz | 380V 3N～50Hz | 380V 3N～50Hz | 380V 3N～50Hz | 380V 3N～50Hz |
Heating capacity under A1 | 12kW | 20kW | 40kW | 80kW | 110kW | 140kW |
Heating consumption power under | 4.8kW | 8.2kW | 16.2kW | 32kW | 44.5kW | 56kW |
Heating capacity under A2 | 11.5kW | 19kW | 38kW | 76kW | 105kW | 135kW |
Heating consumption power under | 5.3kW | 8.7kW | 17.5kW | 34.5kW | 48kW | 61kW |
Heating capacity under A3 |
| 17kW | 35kW | 65kW | 90kW | 110kW |
Heating consumption power |
| 8.5kW | 19kW | 37.5kW | 52kW | 63.5kW |
Heating capacity under A4working |
| 15kW | 30kW | 58kW | 80kW | 100kW |
Heating consumption power |
| 9.3kW | 18.5kW | 36kW | 49.6kW | 61.7kW |
Maximum operating current | 40A | 35A | 70A | 120A | 160A | 200A |
discharge | 2.1m³/h | 3.5m³/h | 6.9m³/h | 13.8m³/h | 18.9m³/h | 24.1m³/h |
noise | ≤56dB(A) | ≤58dB(A) | ≤60dB(A) | ≤65dB(A) | ≤68dB(A) | ≤72dB(A) |
Water side pressure loss | ≤72kPa | ≤75kPa | ≤75kPa | ≤85kPa | ≤85kPa | ≤88kPa |
Unit size(length x width x height mm) | 1030×410×1390 | 860×780×1780 | 1550×780×1780 | 2260×1030×2170 | 2260×1230×2170 | 2260×1230×2170 |
CONNECT SIZE | DN32(hexagon nipples ) | DN32(hexagon | DN40(hexagon | DN50(flange) | DN65(flange) | DN80(flange) |
Unit weight(kg) | 160 | 212 | 412 | 750 | 1100 | 1250 |
