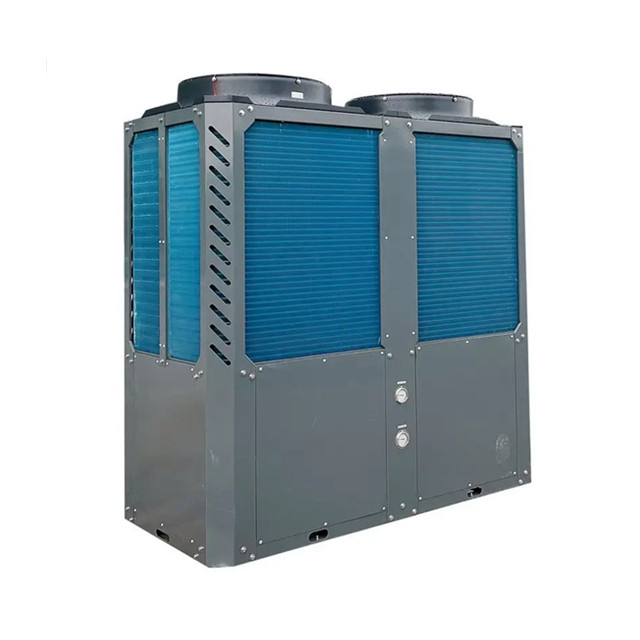

Two-Stage 150°C High Temperature Industrial Heat Pumps

This industrial heat pump is designed for high-temperature industrial hot water and steam applications requiring water temperatures of up to 150°C.

Brand:
Leomon

Quantity:
Availability:





Inquire Add to Basket

150°C High Temperature Industrial Heat Pumps

>> Product Description

This industrial heat pump is specifically designed for high-temperature industrial hot water and steam applications requiring water temperatures of up to 150°C.

With a rated outlet water temperature of 150°C, the unit utilizes R1234ze refrigerant. It is capable of operating in ambient temperatures ranging from -5°C to 43°C, effectively meeting demanding industrial and commercial hot-water requirements.

Features

Features

1. Ultra-low GWP (Global Warming Potential) R1234ze refrigerant

2. Screw-type compressor engineered for continuous, heavy-duty, high-temperature operation

3. Cooling system with an internal circuit

4. Robust shell-and-tube heat exchanger

Advantages

1. Optimized for High-Temperature Refrigerants

The refrigerant circulation path and thermophysical properties are optimized for high-temperature conditions, enhancing the thermodynamic cycle efficiency of the system within the high-temperature range.

2. Reinforced High-Temperature, High-Pressure Heat Exchanger

The shell-and-tube heat exchanger features a reinforced structural design and high pressure resistance, ensuring stable, safe, and reliable heat exchange under high-temperature and high-pressure operating conditions.

3. Redundant System Safety Protection

To ensure reliable and safe operation—even under extreme working conditions—the system is equipped with multi-level protection mechanisms for pressure, temperature, and flow.

4. Industrial-Grade Continuous Operation

Optimized for applications such as industrial steam replacement, this unit is built to withstand prolonged, high-temperature, high-load operation, meeting the continuous production requirements of manufacturing processes.

Specifications

Stacked air source high-temperature steam heat pump(150℃ steam)
Model	FKH-18II/TGW	FKH-45II/TGW	FKH-65II/TGW	FKH-90II/TGW	FKH-130II/TGW	FKH-250I/TGW
Generate steam quantity	30kg	80kg	100kg	160kg	200kg	360kg
Power Specifications	380V 3N~50Hz	380V 3N~50Hz	380V 3N~50Hz	380V 3N~50Hz	380V 3N~50Hz	380V 3N~50Hz
A1 heating capacity(20℃	20KW	45KW	65KW	90KW	130KW	250KW
A1 Heating consumption power	12KW	28KW	40.5KW	56KW	81KW	165KW
Maximum operating current	30A	70A	120A	150A	200A	400A
Noise	≤72dB(A)	≤72dB(A)	≤75dB(A)	≤80dB(A)	≤80dB(A)	≤86dB(A)
Unit size(length x width x height mm)	1600×780×2000	2100×780×2000	3260×1030×2400	3260×1230×2400	3260×1230×2400	4000×2260×2600
Steam connection size	DN32	DN32	DN40	DN40	DN40	DN50
Size of water replenishment connection pipe	DN20	DN20	DN20	DN20	DN20	DN20
Unit weight (kg)	240	580	1180	1430	2100	5000
Price(usd)	6176	12500	16470	22058	30882	63235
The above perfomance parameters are formulated according to the requirements:
Operating conditions:ambient temperature of 20℃,steam temperature of 150℃; The minimum operating ambient temperature for this device is 15℃.

Contact us

If you are looking for a high-temperature heat pump solution, please contact us. Our heat pump experts are ready to provide you with the optimal solution.
