Keeping industrial processes hot is expensive, especially when factories need steady heat throughout the day. Boilers and electric heaters can drive up energy costs. A 90°C High Temperature Heat Pump offers another way to supply industrial hot water. It draws heat from the surrounding air or another source, then raises the water temperature. However, 90°C is a maximum rating under specific conditions, not a guaranteed output in every environment. Food processing, textile manufacturing, and industrial cleaning are among the potential applications. The real question is whether their heating requirements match the system's capabilities. Understanding temperature limits, operating conditions, and heating costs helps manufacturers decide where this technology makes sense.
A 90°C heat pump works best where industrial equipment needs controlled hot water rather than high-pressure steam. Several manufacturing industries have processes within this temperature range. However, individual production requirements should determine whether the technology is suitable.
Food processing facilities frequently need heated water for washing, cleaning, and temperature-controlled production. Many operations require temperatures between 60°C and 90°C, although exact requirements vary.
A high-temperature heat pump can supply hot water for selected applications, including:
Equipment cleaning: Supplying heated water for cleaning tanks, pipelines, and processing equipment.
Ingredient preparation: Providing controlled heat for suitable mixing and preparation operations.
Indirect heating: Circulating hot water through heat exchangers or jacketed processing equipment.
Facility sanitation: Supporting cleaning operations where the required temperature meets hygiene standards.
For example, a factory may need 80°C water during daily equipment cleaning. A suitable heat pump could maintain the hot water supply throughout scheduled cleaning periods. However, thermal processing requirements must be reviewed carefully. Some sterilization operations require steam or temperatures beyond the heat pump's operating range. Water quality also matters when heated water contacts food or processing surfaces.
Textile production uses heated water during washing, dyeing, and fabric treatment. Certain processes operate within the range supplied by a 90°C heat pump. For example, washing equipment may require water around 70°C. Some dyeing operations also use controlled hot water at similar temperatures. A heat pump can supply heat to these processes through suitable circulation systems.
Metal finishing facilities present another opportunity. They often use heated tanks for degreasing, washing, and surface preparation. Hot water can transfer heat into these tanks through external heat exchangers.
This arrangement helps separate the heating equipment from aggressive processing chemicals. However, the heat exchanger materials must suit the actual chemical environment. Not every textile or metal treatment process operates below 90°C. Some require higher temperatures or different heating methods. Their requirements must be confirmed before equipment selection.
Industrial laundries often consume large quantities of heated water each day. Washing and rinsing cycles create repeated demand across several machines. A centralized high-temperature heat pump can support these operations through a shared hot water system. Storage tanks may help manage short periods of high demand.
This approach can also suit leather processing and other manufacturing operations requiring repeated hot water supply. Facilities operating several shifts may offer particularly favorable conditions. Their regular heating demand allows equipment to run for longer periods.
However, daily water consumption alone does not determine the required heating capacity. Engineers must also consider peak flow rates and temperature recovery times.
The following table summarizes several potential applications.
Industrial Application | Heating Requirement | Key Consideration |
Food processing | Cleaning and indirect process heating | Hygiene and temperature control |
Textile manufacturing | Washing and selected dyeing processes | Batch demand and temperature limits |
Metal surface treatment | Heated cleaning and treatment tanks | Chemical compatibility |
Industrial laundries | Washing and rinsing water | Peak demand and storage |
Leather processing | Washing and controlled-temperature treatment | Water quality and temperature stability |
These applications are potential candidates rather than guaranteed matches. Each process requires a separate temperature and heating load assessment.
Selecting equipment based only on its maximum outlet temperature can create problems. The temperature needed inside a process may differ from the temperature supplied by the heat pump.
Consider a manufacturing tank that must remain at 80°C. Its heating system may need water above 80°C to transfer sufficient heat. Heat exchangers require a temperature difference to move heat between circuits. Distribution pipes can also lose heat before water reaches the equipment. A system supplying 90°C water might serve this process successfully. However, actual performance depends on the heat exchanger and circulation design.
Engineers should check three temperatures before selecting equipment:
1. Process temperature: The temperature required inside the manufacturing equipment.
2. Supply temperature: The hot water temperature entering the process heating circuit.
3. Return temperature: The water temperature returning after delivering useful heat.
These values influence heating capacity and overall system efficiency. There is little benefit in producing 90°C water when a process only requires 65°C. Lower supply temperatures generally reduce the work required from the compressor. This can improve efficiency and reduce electricity consumption.
A 90°C hot water heat pump cannot directly replace every industrial boiler. The distinction between hot water and steam is important. Some factories use steam for direct injection, pressure heating, or high-temperature sterilization. These processes cannot simply switch to a 90°C water circuit.
However, many boiler systems also supply ordinary process hot water. Those heating loads may be suitable for a heat pump. For example, a food factory might use steam for sterilization and hot water for equipment cleaning. A heat pump could handle the cleaning water demand while the boiler continues supplying steam. This hybrid arrangement reduces the amount of suitable hot water heating handled by the boiler. It also avoids unnecessary changes to steam-dependent equipment.
Industrial heat pumps do not deliver identical performance under every operating condition. Outdoor temperature, water temperature, and heating demand all influence their output. Understanding these factors helps avoid unrealistic efficiency expectations.
Air source heat pumps extract energy from the surrounding environment. As outdoor temperatures fall, less accessible heat may be available. The compressor may need to work harder to maintain the required water temperature. Heating capacity and efficiency can therefore decline in colder conditions.
For example, equipment rated at 20°C ambient temperature may perform differently at -12°C. A factory operating through winter must account for this difference. Frost can create another challenge. During cold, humid weather, frost may accumulate on outdoor heat exchangers. Defrost cycles temporarily affect useful heat delivery.
This makes seasonal performance more important than a single rated capacity. Manufacturers should request performance data covering their local temperature range. The selected equipment must still satisfy critical heating requirements during demanding conditions.
The coefficient of performance, or COP, describes heat pump efficiency. It compares useful heating output against electrical energy consumption. A COP of 2.5 means the heat pump delivers 2.5 kWh of heat per kWh of electricity. This is a performance ratio, not a fixed efficiency guarantee.
As the required water temperature increases, the compressor generally performs more work. Consequently, heating water to 90°C often requires more electricity than heating it to 70°C. Return water temperature also affects operating performance. System design should therefore consider the complete heating circuit.
Consider a process requiring 1,000 kWh of useful heat.
Assumed COP | Electricity Consumption | Useful Heat Delivered |
2.0 | 500 kWh | 1,000 kWh |
2.5 | 400 kWh | 1,000 kWh |
3.0 | Approximately 333 kWh | 1,000 kWh |
The difference is significant for facilities operating thousands of hours annually. However, actual consumption must be calculated using realistic seasonal conditions.
Installing a heat pump involves more than connecting two water pipes. Industrial heating systems must deliver consistent temperatures during changing production conditions. A suitable integration strategy protects existing operations while improving energy performance.
Most industrial installations use a circulating water system to distribute heat. The heat pump raises water temperature before supplying storage tanks or process equipment. Heat exchangers may transfer this energy into separate production circuits. This prevents process chemicals or unsuitable water from entering the heat pump.
A typical installation may include:
Buffer tank: Helps manage changing heating demand and equipment cycling.
Circulation pumps: Maintain the required water flow through the heating system.
Heat exchangers: Transfer heat between separate water or process circuits.
Insulated piping: Reduces heat losses during distribution.
Temperature controls: Adjust system operation according to process demand.
Storage capacity should reflect actual operating patterns. An oversized tank adds cost and heat loss, while insufficient storage may cause temperature fluctuations. Water quality also deserves attention. Scaling, corrosion, and fouling can reduce heat exchanger performance over time.
Many factories already operate boilers connected to extensive heating networks. Replacing the entire system may be unnecessary or impractical. A heat pump can instead serve suitable base heating loads. The existing boiler can remain available for peaks, steam demand, or emergency backup.
For example, a textile factory might need continuous 75°C water for washing. Its boiler could continue supplying higher-temperature process heat. Engineers must examine available installation space, electrical capacity, and existing pipe connections. Controls must also coordinate both heating systems.
Commissioning should follow a planned sequence. Temperature stability and production continuity remain priorities throughout the transition. Several smaller heat pumps may sometimes provide better flexibility than one large unit. Multiple units can adjust output as demand changes. The final arrangement depends on the facility's heating profile.
Operating cost is a major reason manufacturers consider high-temperature heat pumps. However, savings depend on existing energy prices and system efficiency. The correct comparison uses the cost of delivering the same amount of useful heat.
For a simple example, assume a factory requires 1,000,000 kWh of heat annually. Electricity costs $0.12 per kWh, and the heat pump achieves a seasonal COP of 2.5. The estimated heat pump electricity consumption would be 400,000 kWh annually. At the assumed tariff, heating electricity would cost approximately $48,000. An electric resistance heater would require roughly 1,000,000 kWh for the same useful heat. Its corresponding electricity cost would be approximately $120,000. The illustrative difference is $72,000 annually before accounting for other system costs.
These assumptions require project-specific verification. They do not represent guaranteed Leomon equipment performance or customer savings. A boiler comparison requires additional information. Fuel prices and actual boiler efficiency determine its useful heating cost. For instance, a boiler operating at 85% efficiency needs more fuel energy than the heat it delivers. However, low fuel prices could still influence the economic outcome.
A complete cost assessment should include:
Annual useful heating demand and operating hours.
Seasonal heat pump efficiency under actual conditions.
Electricity tariffs, demand charges, and applicable fuel prices.
Circulation pumps, defrost energy, and auxiliary heating.
Equipment, installation, and electrical upgrade costs.
Maintenance requirements and expected operating life.
Facilities running continuously may recover their investment faster than those operating occasionally. Higher utilization spreads equipment costs across more useful heating hours.
Simple payback can provide an initial comparison. Divide the total investment by estimated annual net savings. However, a final investment decision should also consider maintenance, future energy prices, and equipment replacement costs.
The right equipment must meet both temperature and heating capacity requirements. Selecting an oversized or undersized system can reduce economic performance. A practical assessment begins with measured process demand rather than equipment specifications alone.
Start by identifying the water volume and temperature rise required during production. For example, heating 5,000 liters of water from 30°C to 80°C requires approximately 291 kWh of thermal energy. This calculation assumes water properties near ordinary operating conditions and excludes system losses.
If the heating period is two hours, the average required heating output is approximately 145 kW. Additional capacity may be needed for simultaneous loads and distribution losses.

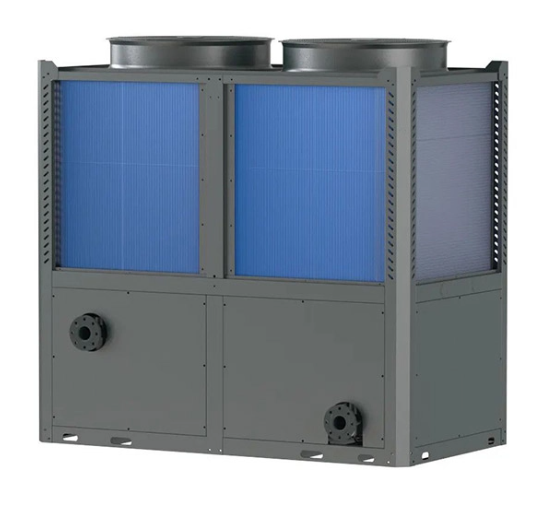

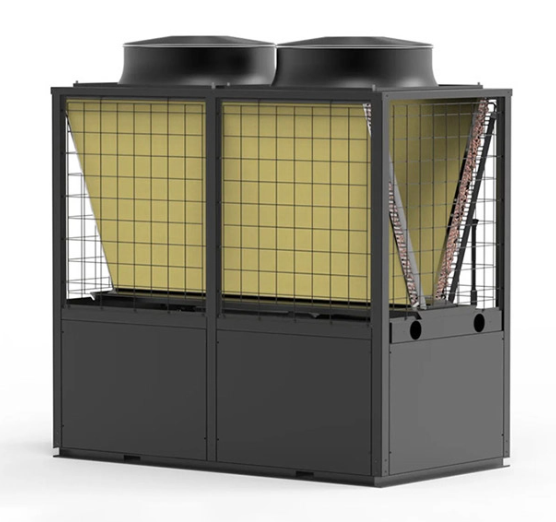

At Leomon, we offer 90°C high-temperature air source heat pumps for industrial hot water applications. Our six-model series has listed A1 heating capacities ranging from 10 kW to 130 kW.
These ratings provide an initial equipment selection reference. Actual capacity must be confirmed at the required water temperature and ambient conditions. We recommend reviewing continuous demand, peak loads, and available storage before choosing a configuration.
A maximum 90°C outlet rating should never replace a detailed performance assessment. Manufacturers should confirm whether the selected heat pump can maintain the required output under site conditions.
Before requesting a quotation, prepare the following information:
Required process temperature and hot water supply temperature.
Water inlet temperature and expected return temperature.
Continuous heating load and maximum hourly demand.
Daily operating hours and seasonal production changes.
Minimum and maximum outdoor temperatures.
Available electrical voltage and supply capacity.
Existing boiler, storage tank, and pipeline arrangements.
Water quality requirements and installation restrictions.
The technical review should also cover water-side pressure loss and equipment access. These details influence pump selection and installation costs. Where necessary, request performance data at several operating points. This helps establish realistic electrical consumption and heating capacity. The final decision should consider both technical suitability and long-term operating economics.
A 90°C High Temperature Heat Pump can help factories reduce energy consumption while maintaining reliable industrial hot water supplies. It works best for processes requiring steady heating within suitable temperature ranges. However, maximum outlet temperature alone cannot guarantee heating capacity, efficiency, or cost savings. Manufacturers should evaluate actual heating demand, operating conditions, and existing energy costs before selecting equipment. Maanshan Leomon Energy-Saving Technology Co., Ltd. offers high-temperature air source heat pumps designed for industrial hot water applications. Our systems support efficient heat delivery across suitable manufacturing processes. By matching heating capacity to actual production needs, we help businesses improve energy efficiency and reduce operating costs while maintaining dependable process heating.
A: A 90°C High Temperature Heat Pump supplies hot water for industrial processes such as food processing, textile washing, and equipment cleaning. It supports operations requiring controlled temperatures below 90°C.
A: A 90°C High Temperature Heat Pump can replace boilers for suitable hot water applications. However, processes requiring steam or higher temperatures may still need conventional or supplementary heating equipment.
A: A 90°C High Temperature Heat Pump can consume less electricity than resistance heating. Its efficiency depends on ambient temperature, water temperature, and system design. Higher temperature lifts generally reduce COP.
A: Operating costs depend on electricity prices, seasonal COP, and annual heating demand. Facilities operating continuously may achieve greater savings, especially when replacing inefficient electric heating systems.
A: Low ambient temperatures, insufficient heating capacity, excessive water flow, or high process demand may prevent the system from reaching 90°C. Check operating conditions, temperature settings, and equipment specifications.
