Reaching 90°C is one thing. Producing that heat efficiently is another. Industrial heat pumps now support hot water production, cleaning, manufacturing, and waste heat recovery. However, higher water temperatures place greater demands on compressors and overall system performance. A 90°C High Temperature Heat Pump may reach its target temperature without delivering optimal efficiency. Its coefficient of performance (COP) measures useful heat output relative to electricity consumption. Temperature lift, heat source conditions, system design, operating loads, and maintenance all affect this result. Understanding these factors helps you compare equipment, identify energy losses, and control long-term operating costs.
Temperature lift is one of the strongest influences on heat pump efficiency. It describes the temperature increase needed between heat collection and heat delivery. As this difference grows, the compressor generally requires more electricity.
A heat pump collects heat from a lower-temperature source and transfers it into water. Its compressor raises the refrigerant pressure and temperature to make this transfer possible. Producing hotter water usually requires higher condensing temperatures and greater compressor work.
Consider an industrial system supplying water at 60°C. Raising its target temperature to 90°C generally increases the required compression ratio. The compressor must then work harder to deliver the required heating output.
This additional effort often reduces COP, even when the system maintains its rated capacity. However, the actual reduction depends on refrigerant properties, compressor efficiency, and heat exchanger design. Two systems reaching 90°C may therefore consume different amounts of electricity.
The important question is not simply whether a heat pump reaches 90°C. Buyers should also examine its electricity consumption at the required operating temperature.
Water entering a heating system at 30°C requires substantial heating before reaching 90°C. Water entering at 70°C needs considerably less additional heat for the same flow rate.
This difference directly affects the remaining heating duty. However, warmer inlet water does not automatically produce a higher COP. Actual efficiency still depends on refrigerant temperatures, heat exchanger performance, and source conditions.
For example, recovered process heat may preheat incoming water before final heating. The heat pump then supplies only the remaining temperature increase. Such arrangements can reduce the electricity required across the complete heating process.
The following comparison illustrates how operating conditions influence performance.
Operating Condition | Main Efficiency Consideration |
Cold heat source and 90°C output | Greater temperature lift increases compressor demand |
Warmer heat source and 90°C output | Smaller temperature lift may improve COP |
Reduced outlet temperature | Lower condensing temperature can improve efficiency |
Preheated inlet water | Less heating duty remains, depending on system design |
These differences explain why rated performance alone cannot predict actual industrial electricity consumption.
Heat pumps depend on the energy available from their surrounding heat source. When source conditions change, heating capacity and electricity consumption can change too.
Air source heat pumps collect thermal energy from outdoor air. As outdoor temperatures fall, extracting enough heat becomes more difficult. The compressor generally needs more electricity to maintain high water temperatures.
Cold weather can also reduce available heating capacity. This becomes particularly important when a factory requires continuous hot water throughout winter.
Under suitable temperature and humidity conditions, frost may accumulate on the outdoor heat exchanger. The system must periodically remove this frost through defrost cycles. These cycles consume energy and can temporarily interrupt normal heating.
Consequently, a heat pump performing well during mild weather may operate differently during winter. Buyers should compare capacity and COP across their expected ambient temperature range.
Industrial facilities sometimes release useful heat through wastewater, cooling systems, or production equipment. Recovering this energy can provide a warmer heat source than outdoor air.
A warmer source generally reduces the temperature lift required for high-temperature heating. This may improve COP and reduce compressor electricity consumption. However, waste heat recovery introduces additional engineering requirements. Its value depends on source temperature, available heat quantity, and operating consistency.
Wastewater may contain oils, particles, or minerals that gradually restrict heat transfer. Additional pumps and heat exchangers also consume energy. Their electricity use must be included when evaluating overall efficiency.
For facilities operating continuously, a stable heat source can offer valuable performance advantages. The final choice should reflect both thermal availability and installation costs.
A suitable heat source cannot guarantee strong performance by itself. Internal components must also operate efficiently under demanding temperature conditions.
The compressor is central to high-temperature heat pump performance. Its efficiency depends on compression ratio, operating speed, discharge temperature, and mechanical design.
At 90°C water output, these operating conditions become particularly demanding. Excessive discharge temperatures or pressure ratios may limit equipment operation and reliability.
Refrigerant selection also influences how efficiently the system transfers heat. Different refrigerants have different pressure-temperature relationships and operating characteristics.
Engineers may use several configurations to meet demanding heating requirements:
Single-stage compression: Offers a relatively straightforward arrangement when operating conditions permit efficient compression.
Enhanced vapor injection: Can improve compression performance and operating range under suitable conditions.
Cascade systems: Use separate refrigeration circuits to manage demanding temperature differences.
No configuration guarantees the highest efficiency in every application. The appropriate design depends on operating temperatures, heating capacity, and equipment limitations. Buyers should therefore compare verified performance data under matching conditions. Maximum operating temperature alone provides little information about electricity consumption.
Heat exchangers transfer energy between refrigerant, source fluid, and heated water. Their design directly affects the temperatures required inside the refrigeration circuit. An undersized or dirty heat exchanger creates greater resistance to heat transfer. The refrigerant may need to operate at less favorable temperatures. This can increase compressor demand and reduce efficiency.
Water circulation presents another important consideration. Insufficient flow can restrict heat transfer and create unstable operating temperatures. Excessive flow may increase pumping electricity without delivering worthwhile performance improvements.
Scale deposits can gradually reduce heat exchanger effectiveness, particularly in demanding water-heating applications. Suitable water treatment and regular inspection help maintain reliable performance. Proper component sizing allows the system to transfer heat efficiently. It also helps prevent avoidable energy losses during continuous industrial operation.
Laboratory ratings describe performance under specific conditions. Industrial facilities rarely operate under identical conditions throughout the day. Production schedules, heating demand, and operating temperatures constantly influence actual energy consumption.
A factory may require substantial heating during production hours. Demand can fall sharply during breaks, cleaning periods, or overnight operation. An oversized heat pump may reach its temperature target quickly and stop. When the water cools, it starts again. Frequent cycling can introduce startup losses and reduce operating efficiency.
Repeated starts may also increase wear on certain components. The impact depends on compressor design, control settings, and system configuration. Variable-capacity control can help equipment respond to changing heating requirements. Modular systems may also distribute heating demand across several operating units.
Thermal storage offers another possible solution. It can separate short-term heating demand from compressor operation, reducing unnecessary cycling when properly designed. The objective is stable operation rather than continuous maximum output. Equipment should match the facility's actual heating profile.
High-temperature water loses heat while moving through pipes, valves, and storage tanks. These losses become more significant as the temperature difference increases. For example, a poorly insulated pipe carrying 90°C water releases heat into surrounding areas. The heat pump must replace this energy to maintain the required temperature.
Long distribution networks and oversized storage tanks can increase these losses. Proper insulation and sensible pipe routing help limit unnecessary heating demand. Auxiliary equipment also contributes to electricity consumption. Circulation pumps, outdoor fans, controls, and defrost systems all require electrical power.
This creates an important distinction between equipment COP and whole-system efficiency. A unit may achieve a favorable COP while the installation consumes excessive auxiliary electricity. Industrial operators should measure useful heat delivered to the process. They should also account for electricity consumed by supporting equipment.
Improving efficiency does not always require replacing the existing equipment. Many practical improvements begin by reviewing heating requirements and operating conditions.
Not every industrial process needs water at 90°C. Some cleaning, washing, or preheating operations may work at lower temperatures. Supplying all processes at the highest required temperature can waste electricity. Separating heating demands allows each process to receive an appropriate water temperature.
Facilities can consider several improvements:
Review temperature setpoints: Confirm actual process requirements before selecting the highest available temperature.
Separate heating circuits: Supply lower-temperature processes without unnecessary high-temperature heating.
Recover available waste heat: Use suitable recovered energy to reduce the remaining heating duty.
Improve insulation: Reduce heat losses from tanks, pipes, and exposed components.
Match production schedules: Adjust heating operation around actual process requirements.
These measures can reduce energy consumption without compromising essential production temperatures. For example, a facility may need 90°C water for one cleaning stage. Other washing operations might require considerably lower temperatures. Separating these loads can reduce unnecessary high-temperature operation.
Regular monitoring helps identify efficiency problems before they significantly increase electricity costs. Operators should track both thermal output and electrical input.
Useful measurements include:
Heat source temperature and operating conditions
Water inlet and outlet temperatures
Water flow rate and heating output
Compressor and auxiliary electricity consumption
Operating hours and compressor cycling frequency
Changes in measured COP over time
These records help operators recognize unusual changes in performance. For example, declining COP under similar conditions may indicate fouling or circulation problems. However, COP should not be compared without considering temperature changes. A winter reading may naturally differ from a summer measurement.
Maintenance should focus on clean heat exchangers, suitable water quality, and reliable circulation. Airflow restrictions and damaged insulation also deserve regular attention. Reviewing performance trends helps facilities detect problems early. It also supports better control settings and more accurate operating cost estimates.
Choosing industrial heating equipment requires more than comparing advertised temperatures. Buyers should confirm whether the system can deliver sufficient heat under actual factory conditions.
A 90°C High Temperature Heat Pump should be evaluated using its heating capacity, electrical input, and expected operating range. A favorable COP at one test condition does not guarantee similar performance throughout the year.

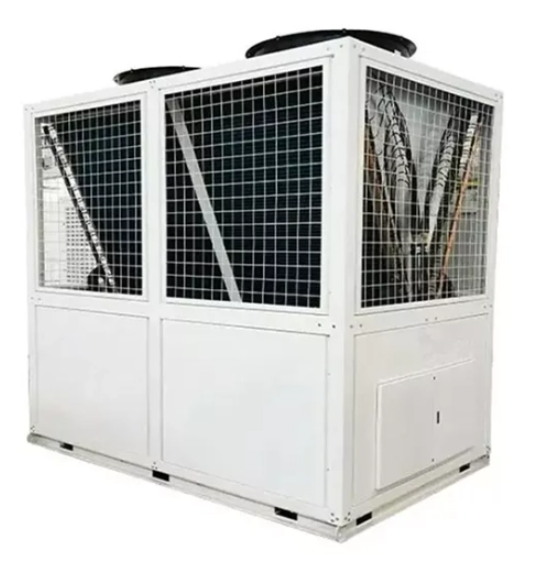

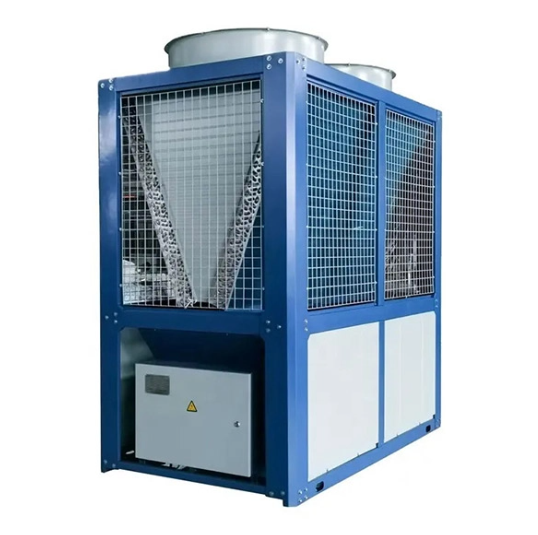

At Leomon, we offer a 90°C high-temperature air source heat pump series for industrial heating requirements. Our range includes six models designed for different heating loads. We recommend matching equipment selection to source conditions, inlet water temperature, and required heating capacity.
Before selecting equipment, buyers should request performance information under representative operating conditions. This is particularly important for facilities facing cold winters or substantial daily load changes.
Confirm the required supply and return water temperatures.
Record minimum and typical heat source temperatures.
Determine peak heating demand and average operating load.
Review heating capacity and electrical input under relevant conditions.
Check expected part-load operation and control capabilities.
Include pumping electricity and distribution heat losses.
Estimate annual electricity consumption using realistic operating hours.
Review maintenance requirements and available technical support.
A useful comparison should consider annual operating costs rather than purchase price alone. Equipment reaching identical water temperatures may deliver different long-term energy performance.
Industrial heat pump efficiency depends on temperature lift, heat source conditions, system design, and actual heating demand. Reaching 90°C alone does not guarantee efficient operation. Reducing unnecessary temperature lift, choosing reliable heat sources, and properly sizing equipment can improve performance. Buyers should compare actual electricity consumption rather than relying only on rated efficiency. Maanshan Leomon Energy-Saving Technology Co., Ltd. provides high-temperature heat pump solutions for demanding industrial applications. Our 90°C High Temperature Heat Pump supports consistent hot water production while helping facilities manage energy consumption. We help customers select suitable heating equipment based on their process temperatures and operating requirements. The right system delivers reliable heating performance and long-term operating value.
A: The COP of a 90°C High Temperature Heat Pump depends on source temperature, heating load, and system design. A higher COP indicates more useful heating output per unit of electricity consumed.
A: A 90°C High Temperature Heat Pump requires more compressor work when outdoor temperatures drop. Colder air increases temperature lift, while frost and defrost cycles can further reduce heating efficiency.
A: Improving a 90°C High Temperature Heat Pump involves reducing unnecessary temperature lift, maintaining clean heat exchangers, optimizing water flow, and matching heating capacity to actual industrial demand.
A: Higher outlet temperatures generally increase compressor energy consumption and reduce COP. However, warmer heat sources and efficient system designs can limit performance losses under high-temperature operating conditions.
A: Industrial heat pumps can consume less electricity than resistance electric boilers for equivalent heating output. Actual savings depend on COP, electricity prices, operating hours, and auxiliary energy consumption.
